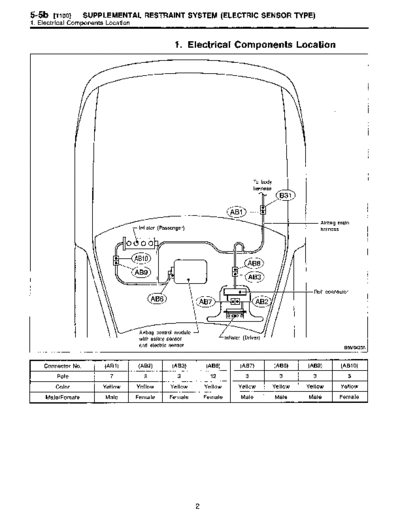

Image preview - the first page of the document
>> Download MSA5T9603A29720 documenatation <<
Text preview - extract from the document
5-5b [T100] SUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
1 . Electrical Components Location
1 . Electrical Components Location
To body
harness
B31
AB1
' Airbag main
~ Inflater (Passenger) harness
OCr00
AB10
AB8
AB9
AB3
'` Roll connector
AB6 AB7 I AB2
~J oc ~o
---~_,
Airbag control module
wish safety sensor Inflater (Driver)
and electric sensor e5nnoa3sA
Connector No . (AB1) (AB2) (AB3) (AB6) (AB7) (A88) (AB9) (AB10)
Pole 7 3 3 12 3 3 3 3
Color Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow
Male/Female Male Female Female Female Male Male Male Female I
