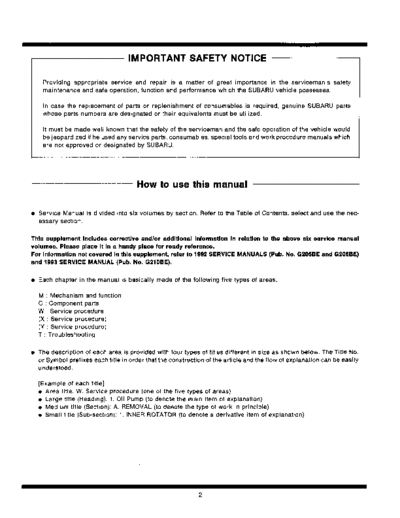

Image preview - the first page of the document
>> Download MSA5T9610A28984 documenatation <<
Text preview - extract from the document
IMPORTANT SAFETY NOTICE
Providing appropriate service and repair is a matter of great importance in the serviceman's safety
maintenance and safe operation, function and performance which the SUBARU vehicle possesses.
In case the replacement of parts or replenishment of consumables is required, genuine SUBARU parts
whose parts numbers are designated or their equivalents must be utilized .
It must be made well known that the safety of the serviceman and the safe operation of the vehicle would
be jeopardized if he used any service parts, consumables, special tools and work procedure manuals which
are not approved or designated by SUBARU .
How to use this manual
Service Manual is divided into six volumes by section. Refer to the Table of Contents, select and use the nec-
essary section .
This supplement includes corrective and/or additional information in relation to the above six service manual
volumes. Please place it in a handy place for ready reference.
For information not covered in this supplement, refer to 1992 SERVICE MANUALS (Pub . No . G205BE and G206BE)
and 1993 SERVICE MANUAL (Pub . No. G210BE).
Each chapter in the manual is basically made of the following five types of areas.
M : Mechanism and function
C : Component parts
W : Service procedure
(X : Service procedure)
(Y : Service procedure)
T : Troubleshooting
~ The description of each area is provided with four types of titles different in size as shown below. The Title No .
or Symbol prefixes each title in order that the construction of the article and the flow of explanation can be easily
understood .
[Example of each title]
" Area title: W . Service procedure (one of the five types of areas)
" Large title (Heading) : 1 . Oil Pump (to denote the main item of explanation)
" Medium title (Section) : A. REMOVAL (to denote the type of work in principle)
" Small title (Sub-section) : 1 . INNER ROTATOR (to denote a derivative item of explanation)
2
~ The Title Index No . is indicated on the top left (or right) side of the page as the book is opened . This is useful
for retrieving the necessary portion.
(Example of usage)
Refer to 2- 4 [ W 1 B 1
7 77 Small title (Sub-section)
Medium title (Section)
Large title (Heading)
Area title
Chapter Na
of title placement
2-tOfwI no CLUTCH
SERVICE PROCEDURE Small title
Large title .General 2.RELEASE LEVER
Check lever pivot portion and the point of contact with
holder for wear.
11 A: PRECAUTION I
When servicing clutch system, pay attention to the
following items. 2 .Release Bearing and Lever
t) Check the routing of clutch cable for smoothness .
2) Excessive tighteness or looseness of clutch cable A: REMOVAL
have a bad influence upon the cable durability .
3) Apply grease sufficiently to the connecting portion of
clutch pedal.
4) Apply grease sufficiently to the release lever portion.
5) Position clutch cable through the center of toBboard
hole - ' ` A.+anstment is done by 2) Seal
In this manual, the following symbols are used .
Should be lubricated with oil.
Should be lubricated with grease .
Sealing point
Tightening torque
3
