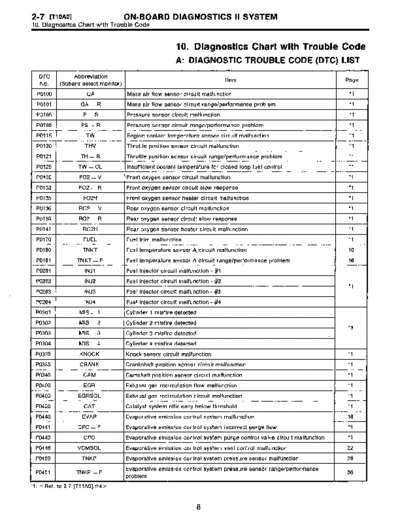

Image preview - the first page of the document
>> Download MSA5T9610A28988 documenatation <<
Text preview - extract from the document
2_7 [T10A0] ON-BOARD DIAGNOSTICS 11 SYSTEM
10 . Diagnostics Chart with Trouble Code
10. Diagnostics Chart with Trouble Code
A: DIAGNOSTIC TROUBLE CODE (DTC) LIST
DTC Abbreviation
Item Page
No . (Subaru select monitor)
P0100 QA Mass air flow sensor circuit malfunction '1
P0101 QA - R Mass air flow sensor circuit range/performance problem `1
P0105 P-S Pressure sensor circuit malfunction *1
P0106 PS - R Pressure sensor circuit range/performance problem *1
P0115 TW Engine coolant temperature sensor circuit malfunction '1
P0120 THV Throttle position sensor circuit malfunction '1
P0121 TH - R Throttle position sensor circuit range/performance problem '1
P0125 TW - CL Insufficient coolant temperature for closed loop fuel control '1
P0130 F02 - V Front oxygen sensor circuit malfunction *1
P0133 F02 - R Front oxygen sensor circuit slow response '1
P0135 F02H Front oxygen sensor heater circuit malfunction *1
P0136 R02 - V Rear oxygen sensor circuit malfunction '1
P0139 R02 - R Rear oxygen sensor circuit slow response *1
P0141 R02H Rear oxygen sensor heater circuit malfunction *1
P0170 FUEL Fuel trim malfunction '1
P0180 TNKT Fuel temperature sensor A circuit malfunction 10
P0181 TNKT- F Fuel temperature sensor A circuit range/performance problem 16
P0201 INJ1 Fuel injector circuit malfunction - #1
P0202 INJ2 Fuel injector circuit malfunction - #2
"1
P0203 INJ3 Fuel injector circuit malfunction - #3
P0204 INJ4 Fuel injector circuit malfunction - #4
P0301 MIS - 1 Cylinder 1 misfire detected
P0302 MIS - 2 Cylinder 2 misfire detected
P0303 MIS - 3 Cylinder 3 misfire detected
P0304 MIS - 4 Cylinder 4 misfire detected
P0325 KNOCK Knock sensor circuit malfunction '1
P0335 CRANK Crankshaft position sensor circuit malfunction '1
P0340 CAM Camshaft position sensor circuit malfunction '1
P0400 EGR Exhaust gas recirculation flow malfunction `1
P0403 EGRSOL Exhaust gas recirculation circuit malfunction '1
P0420 CAT Catalyst system efficiency below threshold '1
P0440 EVAP Evaporative emission control system malfunction 18
P0441 CPC - F Evaporative emission control system incorrect purge flow '1
P0443 CPC Evaporative emission control system purge control valve circuit malfunction '1
P0446 VCMSOL Evaporative emission control system vent control malfunction 22
P0450 TNKP Evaporative emission control system pressure sensor malfunction 28
Evaporative emission control system pressure sensor range/performance
P0451 TNKP - F 36
problem
'1 :
ON-BOARD DIAGNOSTICS 11 SYSTEM [T10A0] 2-7
10 . Diagnostics Chart with Trouble Code
DTC Abbreviation
Item Page
No . (Subaru select monitor)
P0500 VSP Vehicle speed sensor malfunction '1
P0505 ISC Idle control system malfunction `1
P0506 ISC - L Idle control system RPM lower than expected '1
P0507 ISC - H Idle control system RPM higher than expected '1
P0600 - Serial communication link malfunction `1
P0601 RAM Internal control module memory check sum error '1
P0703 ATBRK Brake switch input malfunction '1
P0705 ATRNG Transmission range sensor circuit malfunction `1
P0710 ATF Transmission fluid temperature sensor circuit malfunction '1
P0720 ATVSP Output speed sensor (vehicle speed sensor 1) circuit malfunction '1
P0725 ATNE Engine speed input circuit malfunction '1
P0731 ATGR1 Gear 1 incorrect ratio
P0732 ATGR2 Gear 2 incorrect ratio
"1
P0733 ATGR3 Gear 3 incorrect ratio
P0734 ATGR4 Gear 4 incorrect ratio
1
P0740 ATLU - F Torque converter clutch system malfunction
P0743 ATLU Torque converter clutch system electrical *1
P0748 ATPL Pressure control solenoid electrical '1
P0753 ATSFTi Shift solenoid A electrical `1
P0758 ATSFT2 Shift solenoid B electrical '1
P0760 ATOVR - F Shift solenoid C malfunction '1
P0763 ATOVR Shift solenoid C electrical '1
P1100 ST-SW Starter switch circuit malfunction '1
P1101 N/P - SW Neutral position switch circuit malfunction [MT vehicles] '1
1
P1101 N/P - SW Neutral position switch circuit malfunction [AT vehicles]
P1102 BR Pressure sources switching solenoid valve circuit malfunction '1
P1103 TRQ Engine torque control signal circuit malfunction `1
P1400 PCVSOL Fuel tank pressure control solenoid valve circuit malfunction 38
P1401 PCV - F Fuel tank pressure control system function problem 44
P1402 FIVL Fuel level sensor circuit malfunction 46
P1500 FAN - 1 Radiator fan relay 1 circuit malfunction '1
P1502 FAN - F Radiator fan function problem '1
P1700 ATTH Throttle position sensor circuit malfunction for automatic transmission '1
P1701 ATCRS Cruise control set signal circuit malfunction for automatic transmission '1
P1702 ATDIAG Automatic transmission diagnosis input signal circuit malfunction '1
P0461'2 EXERR22 Fuel level sensor circuit range/performance problem 56
"1 : < Ref . to 2-7 [T11A0] .*4 >
'2 : Only OBD-II general scan tool displays DTC .
2-7 [T10BOa] ON-BOARD DIAGNOSTICS II SYSTEM
10 . Diagnostics Chart with Trouble Code
BO : DTC P0180
- FUEL TEMPERATURE SENSOR A CIRCUIT
MALFUNCTION (TNKT) -
OBD (FBI)
DTC DETECTING CONDITION:
P0180 e Immediately at fault recognition
H2M1306
Connect Subaru Select Monitor or the
10801
OBD-11 general scan tool, and read data .
Check harness between fuel temperature
10802
sensor and ECM connector .
Check harness between fuel temperature
10B03
sensor and ECM connector.
CAUTION :
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
< Ref. to 2-7 [T3D0] and [T3E0] .*2 and *4 >
10
ON-BOARD DIAGNOSTICS II SYSTEM RIoBOOi 2-7
10 . Diagnostics Chart with Trouble Code
WIRING DIAGRAM:
S .M .J .
B84 (~ Fueltank
897 Rt R15 R57
:::M[
:EjjFue1 temperature
ss ensor
ECM
,?22
(9D
Q
IE
884 822
12 34 78 3 4
17118119120121122123124 25 261271281291301 A
11
9 ?6
41147 52 53 54 55 56 57 9 01112 FTM r-, .M F112 3
-M
7 1 71 417576177 1 4 1 16 RUSTUP 141516
B2M1015
11
2-7 [T10B01] ON-BOARD DIAGNOSTICS II SYSTEM
10 . Diagnostics Chart with Trouble Code
Data link connector -
Subaru select monitor and
CONNECT SUBARU SELECT MONITOR OR
BrD-11 general scan tool) 10801 THE OBD-II GENERAL SCAN TOOL, AND
READ DATA.
1) Turn ignition switch to OFF.
Data link connector
~(for Subaru select monitor 2) Connect Subaru Select Monitor or the OBD-II general
~onlY) scan tool to data link connector.
3) Turn ignition switch to ON and Subaru Select Monitor
\~V or OBD-II general scan tool switch to ON.
4) Start engine .
82M1016A I
5) Read data on Subaru Select Monitor or OBD-II general
scan tool .
* Subaru Select Monitor
TNKT (F44) Designate mode using function key.
Function mode: F44
