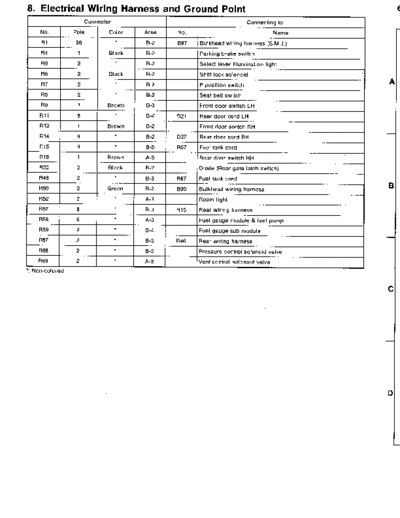

Image preview - the first page of the document
>> Download MSA5T9610A28991 documenatation <<
Text preview - extract from the document
8. Electrical Wiring Harness and Ground Point 6
Connector Connecting to
No. Pole Color Area No . Name
R1 56 B-2 B97 Bulkhead wiring harness (S .M .J .)
R4 1 Black B-2 Parking brake switch
R5 2 B-2 Select lever illumination light
R6 2 Black B-2 Shift lock solenoid
R7 2 B-2 P position switch A
RS 2 B-2 Seat belt switch
R9 1 Brown B-3 Front door switch LH
R11 8 B-4 D21 Rear door cord LH
R12 1 Brown B-2 Front door switch RH
R14 8 B-2 D27 Rear door cord RH
R15 8 B-3 R57 Fuel tank cord
R16 1 Brown A-3 Rear door switch RH
R30 2 Black B-2 Diode (Rear gale latch switch)
R46 2 B3 R67 Fuel lank cord
R50 2 Green B-2 890 Bulkhead wiring harness
B
R52 2 A-3 Room light
R57 S B-3 R15 Rear wiring harness
R58 6 A-3 Fuel gauge module & fuel pump
R59 2 B-4 Fuel gauge sub module
R67 2 B-3 R46 Rear wiring harness
R68 2 B-3 Pressure control solenoid valve
R69 I 2 A-3 Vent control solenoid valve
non-coiorea
C
n
[D806]
8. Electrical Wiring Harness and Ground Point 6. REAR WIRING HARNESS AND GROUND POINT
Connector Connecting to
1 I 2 I 3 I 4
No. Pole Color Area No . Name
R1 56 B-2 B97 Bulkhead wiring harness (S .M .J .)
R4 1 Black B-2 Parking brake switch
R5 2 B-2 Select lever illumination light
R6 2 Black B-2 Shift lock solenoid
R7 2 B-2 P position switch A A
RS 2 B-2 Seat belt switch
R9 1 Brown B-3 Front door switch LH
R11 8 B-4 D21 Rear door cord LH
R12 1 Brown B-2 Front door switch RH
R14 8 B-2 D27 Rear door cord RH
R15 8 B-3 R57 Fuel tank cord
R16 1 Brown A-3 Rear door switch RH
R30 2 Black B-2 Diode (Rear gale latch switch)
R46 2 B3 R67 Fuel lank cord
R50 2 Green B-2 890 Bulkhead wiring harness
B B
R52 2 A-3 Room light
R57 S B-3 R15 Rear wiring harness
R58 6 A-3 Fuel gauge module & fuel pump
R59 2 B-4 Fuel gauge sub module
R67 2 B-3 R46 Rear wiring harness
R68 2 B-3 Pressure control solenoid valve
R69 I 2 A-3 Vent control solenoid valve
non-coiorea
C C
n u
B6M0695A
2 ~S 4
Connector Connecting to
9. REAR END WIRING HARNESS AND GROUND POINT
No . Pole Color Area No . Name 1 2 3 4
R22 1 Brown C-1 Rear door switch LH
R23 6 G2 Power antenna
R25 2 Black C-3 Rear defogger condenser
R26 4 Black D-4 Rear combination light RH
R28 4 Black C-2 Rear combination light LH 11`~~Il'//
R36 5 Black C-3 Rear wiper relay
R37 2 C-3 D33
R38 4 G3 D34 Rear gate cord
R39 8 C-4 D35
R47 3 I D-3 I Fuel tank pressure sensor
Connector Connecting to
No . Pole Color Area No . Name
D33 2 C-3 R37
D34 4 C-3 R38 Rear wiring harness
B
D35 8 C-4 R39
D37 1 Black B-3
L uggage room li ght
D38 1 B-3
D39 2 B-3 High-mounted stop light
D40 1 Black B-4 Rear defogger (Power)
D42 4 B-4 Rear finisher light RH
D43 4 8-3 Rear wiper motor
D44 2 B-4 License plate light RH
D45 2 A-3 License plate light LH
D46 2 Black A-4 Rear gate latch switch
C
D47 4 A-4 Rear gate lock actuator
D48
D49 I
1
4
Black B-3
A-3
Rear defogger (Ground)
Rear finisher light LH
C
'' Non-colored
D
B6M069
1 2 3_ I 4
13
Connector Connecting to
9. REAR END WIRING HARNESS AND GROUND POINT
No . Pole Color Area No . Name 1 2 3 4
R22 1 Brown C-1 Rear door switch LH
R23 6 G2 Power antenna
R25 2 Black C-3 Rear defogger condenser
R26 4 Black D-4 Rear combination light RH
R28 4 Black C-2 Rear combination light LH 11`~~Il'//
R36 5 Black C-3 Rear wiper relay
R37 2 C-3 D33
R38 4 G3 D34 Rear gate cord
R39 8 C-4 D35
R47 3 I D-3 I Fuel tank pressure sensor
Connector Connecting to
No . Pole Color Area No . Name
D33 2 C-3 R37
D34 4 C-3 R38 Rear wiring harness
B
D35 8 C-4 R39
D37 1 Black B-3
L uggage room li ght
D38 1 B-3
D39 2 B-3 High-mounted stop light
D40 1 Black B-4 Rear defogger (Power)
D42 4 B-4 Rear finisher light RH
D43 4 8-3 Rear wiper motor
D44 2 B-4 License plate light RH
D45 2 A-3 License plate light LH
D46 2 Black A-4 Rear gate latch switch
C
D47 4 A-4 Rear gate lock actuator
D48
D49 I
1
4
Black B-3
A-3
Rear defogger (Ground)
Rear finisher light LH
C
'' Non-colored
D
B6M069
1 2 3_ I 4
13
