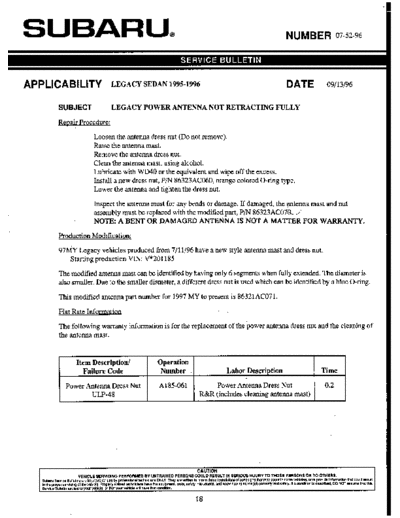

Image preview - the first page of the document



>> Download 07-52-9630511 documenatation <<

Text preview - extract from the document

SUBARU,

          SUBJECT                           LEGACY POWER ANTENNA NOT RETRACTING FULLY
          Repair Procedure:
                                Loosen the antenna dress nut (Do not remove).
                                Raise the antenna mast.
                                Remove the antenna dress nut.
                                Clean the antenna mast, using alcohol.
                                Lubricate with WD40 or the equivalent and wipe off the excess.
                                Install a new dress nut, P/N 86323AC060, orange colored O-ring type.
                                Lower the antenna and tighten the dress nut.
                                Inspect the antenna mast for any bends or damage. If damaged, the antenna mast and nut
                                assembly must be replaced with the modified part, P/N 8 6 3 2 3 A C 0 7 u
                                NOTE: A BENT OR DAMAGED ANTENNA IS NOT A MATTER FOR WARRANTY.
          Production Modification:
          97MY Legacy vehicles produced from 7/11/96 have a new style antenna mast and dress nut.
             Starting production VIN: V"201185
          The modified antenna mast can be identified by having only 6 segments when fully extended. The diameter is
          also smaller. Due to the smaller diameter, a different dress nut is used which can be identified by a blue O-ring.
          This modified antenna part number for 1997 MY to present is 86321AC071.
          Flat Rate Information
          The following warranty information is for the replacement of the power antenna dress nut and the cleaning of
          the antenna mast.


                     Item Description/                                   Operation
                       Failure Code                                       Number                                     Labor Description                                           Time
              Power Antenna Dress Nut                                     A185-061                      Power Antenna Dress Nut                                                     0.2
                     ULP-48                                                                         R&R (includes cleaning antenna mast)




                                                                                                  CAUTION
                      VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
Subaru Service Bullelinsare intended lor use by prolessionallechnicians ONLY. They are mitten lo Inform those technicians of condltions that may m r in some vehicles, or to provide informationMat could ~ssisl
In the prcper servkim 01 the vehicle. Prcperly tralned technicianshave the equipmenl, tools. safety ins1RIcllons,end know-how lo do Me job CorrecUy and safely. if a condition is described, DO NOT assume that thls
Service Bulletlnapplies to your vehicle, or that your vehicle will have that condlon.

                                                                                                 18
