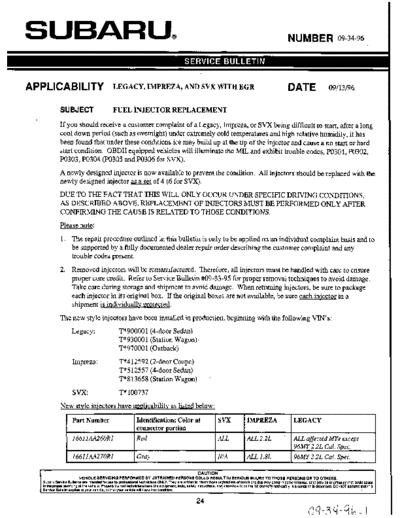

Image preview - the first page of the document



>> Download 09-34-9630510 documenatation <<

Text preview - extract from the document

APPLlCABlLlTY           LEGACY, IMPREZA, AND SVX WITH EGR                            DATE           09/13/96.

     SUBJECT           FUEL INJECTOR REPLACEMENT
     If you should receive a customer complaint of a Legacy, Impreza, or SVX being difficult to start, after a long
     cool down period (such as overnight) under extremely cold temperatures and high relative humidity, it has
     been found that under these conditions ice may build up at the tip of the injector and cause a no start or hard
     start condition. OBDII equipped vehicles will illuminate the MIL and exhibit trouble codes, P0301, P0302,
     P0303, PO304 (PO305 and PO306 for SVX).
     A newly designed injector is now available to prevent the condition. All injectors should be replaced with the
     newly designed injector as a set of 4 (6 for SVX).
     DUE TO THE FACT THAT THIS WILL ONLY OCCUR UNDER SPECIFIC DRIVING CONDITIONS,
     AS DESCRIBED ABOVE, REPLACEMENT OF INJECTORS MUST BE PERFORMED ONLY AFTER
     CONFIRMING THE CAUSE IS RELATED TO THOSE CONDITIONS.
     Please note:
     1. The repair procedure outlined in this bulletin is only to be applied on an individual complaint basis and to
        be supported by a fully documented dealer repair order describing the customer complaint and any
        trouble codes present.
     2. Removed injectors will be remanufactured. Therefore, all injectors must be handled with care to ensure
        proper core credit. Refer to Service Bulletin W9-33-95 for proper removal techniques to avoid damage.
        Take care during storage and shipment to avoid damage. When returning injectors, be sure to package
        each injector in its original box. If the original boxes are not available, be sure each iniector in a
        shipment is individually protected.
     The new style injectors have been installed in production, beginning with the following VIN's:
         Legacy:          T*900001 (4-dOOr Sedan)
                          T*930001 (Station Wagon)
                          T"970001 (Outback)
         Impreza:         T*412592 (2-door Coupe)
                          T*512557 (4-dOOr Sedan)
                          T*813658 (Station Wagon)
         SVX:             T* 100737
     New stvle iniectors have applicability as listed below:
         Part Number            Identification: Color at       SVX     IMPREZA          LEGACY
                                connector portion
         16611AA260Rl           Red                            ALL     ALL 2.2L        ALL affectedMYs except
                                                                                        96MY 2.2L Cal. Spec.
         1661 1AA27ORl          Gray                           NIA     ALL 1.8L         96MY 2.2L Cal. Spec.
