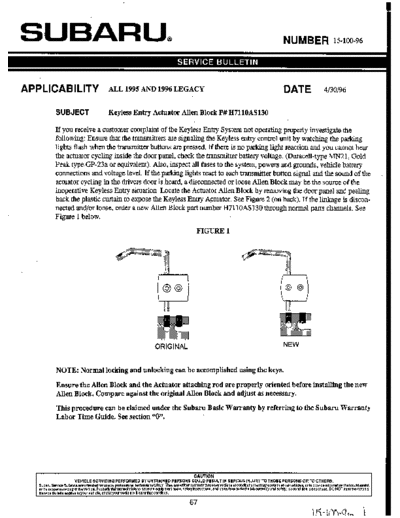

Image preview - the first page of the document



>> Download 15-100-9630529 documenatation <<

Text preview - extract from the document

SUBARU,

         SUBJECT                        Keyless Entry Actuator Allen Block P# H7110AS130

         If you receive a customer complaint of the Keyless Entry System not operating properly investigate the
         following: Ensure that the transmitters are signaling the Keyless entry control unit by watching the parking
         lights flash when the transmitter buttons are pressed. If there is no parking light reaction and you cannot hear
         the actuator cycling inside the door panel, check the transmitter battery voltage. (Duracell-typeMN21, Gold
         Peak type GP-23a OF equivalent). Also, inspect all fuses to the system, powers and grounds, vehicle battery
         connections and voltage level. If the parking lights react to each transmitter button signal and the sound of the
         actuator cycling in the drivers door is heard, a disconnected or loose Allen Block may be the source of the
         inoperative Keyless Entry situation. Locate the Actuator Allen Block by removing the door panel and peeling
         back the plastic curtain to expose the Keyless Entry Actuator. See Figure 2 (on back). If the linkage is discon-
         nected and/or loose, order a new Allen Block part number H7110AS130 through normal parts channels. See
         Figure 1 below.
                                                                                             FIGURE 1




                                                                    ORlGINAL                                                                    NEW


          NOTE: Normal locking and unlocking can be accomplished using the keys.
         Ensure the Allen Block and the Actuator attaching rod are properly oriented before installing the new
         Allen Block, Compare against the original Allen Block and adjust as necessary.
          This procedure can be claimed under the Subaru Basic Warranty by referring to the Subaru Warranty
          Labor Time Guide. See section "0".




                                                                       CAUTION
                     VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
SubaN Service Buitatlns are intendedforuseby professionaltechniciansONLY. They are written toinformthosetechnldansofcondltlonsthat m y occurin somevehicies, orto provideinformationthatcouidassist
Inthepropersewlclng ofthevehicle. Properlytrainedtechnldanshavethe equpmenttools, safetyinstNcUons,andknow-howtodothelobconecttyand safely. Ifaconditionisdescribed, DONOTassumethat this
Sewice Bulletlnapples toyourvehlcle. or that yourvehiclewlll have that condition.
KEYLESS ENTRY ACTUATOR ASSEMBLY

             I       I
         I       I




                     FIGURE 2
