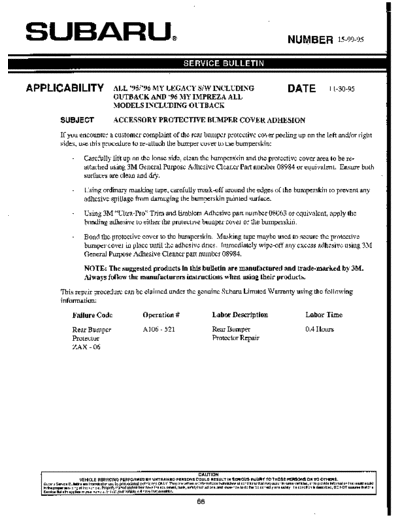

Image preview - the first page of the document
>> Download 15-99-9541115 documenatation <<
Text preview - extract from the document
SUBARU NUMBER 15-99-95
APPLlCABlLlTY ALL '95/'96 MY LEGACY S/W INCLUDING DATE 11-30-95
OUTBACK AND `96 MY IMPREZA ALL
MODELS INCLUDING OUTBACK
SUBJECT ACCESSORY PROTECTIVE BUMPER COVER ADHESION
If you encounter a customer complaint of the rear bumper protective cover peeling up on the left and/or right
sides, use this procedure to re-attach the bumper cover to the bumperskin:
Carefully lift up on the loose side, clean the bumperskin and the protective cover area to be re-
attached using 3M General Purpose Adhesive Cleaner Part number 08984 or equivalent. Ensure both
surfaces are clean and dry.
Using ordinary masking tape, carefully mask-off around the edges of the bumperskin to prevent any
adhesive spillage from damaging the bumperskin painted surface.
Using 3M "Ultra-Pro" Trim and Emblem Adhesive part number 08063 or equivalent, apply the
bonding adhesive to either the protective bumper cover or the bumperskin.
Bond the protective cover to the bumperskin. Masking tape maybe used to secure the protective
bumper cover in place until the adhesive dries. Immediately wipe-off any excess adhesive using 3M
General Purpose Adhesive Cleaner part number 08984.
NOTE: The suggested products in this bulletin are manufactured and trade-marked by 3M.
Always follow the manufacturers instructions when using their products.
This repair procedure can be claimed under the genuine Subaru Limited Warranty using the following
information:
Failure Code Operation # Labor Description Labor Time
Rear Bumper A106 - 521 Rear Bumper 0.4 Hours
Protector Protector Repair
ZAX - 06
CAUTION
VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
Subaru Service Bulletins are intendedfor use by professionaltechniclansONLY. They are written lo Inform those technicians of conditions that may occur in some vehicles. or to provide informationthat could assist
In the prwer servicingof the vehicle. Properlytrained technicians have the equipment, toois, safety instructions, and know.how to do the Jobcorrectlyand safely. if a condition is described, DO NOT assume that this
I Servke Bulletin applies to your vehicle, or that your vehicle will have that condition. I
