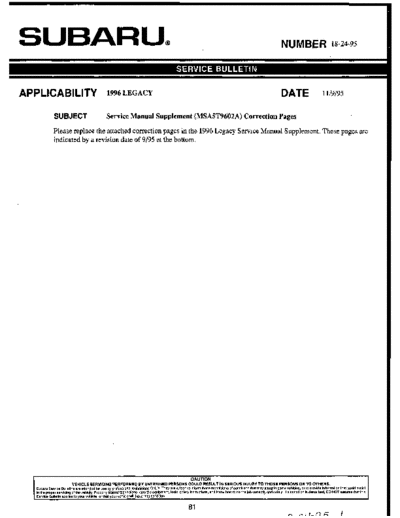

Image preview - the first page of the document
>> Download 18-24-9534437 documenatation <<
Text preview - extract from the document
SUBARU,
AP PLlCABILlTY 1996 LEGACY DATE 11/9/95
SUBJECT Service Manual Supplement (MSA5T9602A) Correction Pages
Please replace the attached correction pages in the 1996 Legacy Service Manual Supplement. These pages are
indicated by a revision date of 9/95 at the bottom.
CAUTION
VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
Subaru Service Bulletins are intendedfor use by professional technicians ONLY. They are written to inform those technicians of conditions that may occur in some vehicies, or to provide informatlon that could assist
in the Drooer servicim of the vehicle. Prooerlv trained technicians have the Baulpment. tools, safety instructions, and know-howto do the lob correctly and safely. If a conditionis descrlbed, DO NOT assume that this
I Service Bulletin a ph to your vehicle, or that your vehicle will have that condition.
pls
81
, A "-.'I A R I
PERIODIC MAINTENANCE
SERVICES 1-5
Page
SCHEDULE OF INSPECTION AND MAINTENANCE SERVICES ....... 2
1. Drive Belt@)[Except Camshaft] (Inspect drive belt tension)
2. Camshaft Drive Belt (Timing Belt) .......................................... 6
3. Engine Oil ........................................................................ 12
4. Engine Oil Filter
5. Replace Engine Coolant and Inspect Cooling System,
Hoses and Connections ...................................................... 15
6. Replace Fuel Filter and Inspect Fuel System,
Lines and Connections
7. Air Cleaner Element
8. Spark Plugs ...................................................................... 17
9. Transmission/Differential (Front and rear) Lubricants ................. 18
(Gear oil)
10.Automatic Transmission Fluid ............................................... 19
11. Brake Fluid
12. Disc Brake Pads and Discs/Front and
Rear Axle Boots and Axle Shaft Joint Portions
13. Brake Linings and Drums
14. Inspect Brake Lines and Check Operation of Parking and
Service Brake System
15.Clutch and Hill-holder System
16. Steering and Suspension System .......................................... 20
17. Front and Rear Wheel Bearing Lubricant
18.Supplemental Restraint System (Airbag)
82
1-5 ~00001 PERIODIC MAINTENANCE SERVICES
I
SCHEDULE OF INSPECTION AND MAINTENANCE SERVICES
All states except California and Canada
Symbols used:
beyond 192,000 km (120,000
R: Replace
miles) or 120 months by returning
I: Inspect, correct or replace if necessary.
to the first column of the mainte-
P: Perform
nance schedule and adding ( I ) or (P): Recommended service for safe vehicle operation
192,000 km (120,000 miles) or
120 months to the column head- *: This maintenance operation is requiredfor all states except California.
However, we do recommend that this operation be performed on Californiavehicles as well.
inas.
MAINTENANCE INTERVAL
15 Clutch and hill-holdersystem I I I I I I I I
16 Steering and suspension I I I I I I I I SeeNOTE6:
Front and rear wheel bearing Iu-
" bricant (1) (1)
18 Supplemental restraint system Inspect every 10 years
83 Revised 9/95
1 ca*3Ll- Q.5-3
PERIODIC MAINTENANCE SERVICES [OOW 1-5
NOTE:
1) When the vehicle is used under severe driving conditions such as those mentioned be-
low*, the engine oil and filter should be changed every 6,000 km (3,750 miles) or 3.5
months.
2) When the vehicle is used in extremely cold or hot weather areas, contamination of the
filter may occur and filter replacement should be performed more often.
3) When the vehicle is frequently operated under severe conditions, replacement should be
performed every 48,000 km (30,000 miles).
4) When the vehicle is frequently operated under severe conditions, replacement should be
performed every 24,000 km (15,000 miles).
5) When the vehicle is used in high humidity areas or in mountainous areas, change the
brake fluid every 24,000 km (15,000 miles) or 15 months, whichever occurs first.
6) When the vehicle is used under severe driving conditions such as those mentioned be=
low*, inspection should be performedevery 12,000 km (7,500 miles)or 7.5 months, which-
ever occurs first.
7) This inspection is not required to maintain emission warranty eligibility and it does not
affect the manufacturer's obligations under EPAs in-use compliance program.
8) When the vehicle is used in extremely dusty conditions, the air cleaner element should
be replaced more often.
* Examples of severe driving conditions:
(1) Repeated short distance driving. (Items 3, 12 and 13 only)
(2) Driving on rough and/or muddy roads. (Items 12, 13 and 16 only)
(3) Driving in dusty conditions.
(4) Driving in extremely cold weather. (Items 3 and 16 only)
(5) Driving in areas where roads salts or other corrosive materials are used. (Items 6, 12, 13,
14 and 16 only)
(6) Living in coastal areas. (Items 6, 12, 13, 14 and 16 only)
(7) Towing a trailer (Item 3, 4, 10, 12 and 13 only)
a4 Revised 9/91
,a nrl f l K rl
1-5 [00001 PERIODIC MAINTENANCE SERVICES
California
Symbols used:
beyond 192,000 km (120,000 R: Replace
miles)or 120 months by returning
I: Inspect,correct or replace if necessary.
to the first column of the mainte-
P: Perform
nance schedule and adding
( I ) or (P): Recommendedservice for safe vehicle operation
192,000 km (120,000 miles) or ': This maintenance operation is required for all states except California.
120 months to the column head- iowever, we do recommend that this operation be performedon Californiavehicles as well.
MAINTENANCE INTERVAL
(Number of months or km (miles), whichever occurs first)
MAINTENANCE Months 3 7.5 15 22.5 3 37.5
0
ITEM
48 60
3 37.5
0
I
Camshaft drive belt I*
I I Enaineoil IRIRIRIR R R
1 I Engine oil filter IRIRIRIR R R
Replace engine coolant and in-
i spect cooling system, hoses and P
connections
Replace fuel filter and inspect fuel
system, hoses and connections I I I I P)
I Air cleaner element I I I I R
2200 cc R
8 Sparkplugs
2500 cc
Transmission/Differential(Front & I
Rear) lubricants (Gear oil)
I
R
Disc brake pads and discs, Front
I
ioint portions
I
3 Brake lininas and drums I I I I I
I
~~ ~
Inspect brake line and check op-
4 eration of parking and service
brake system
5 I Clutch and hill-holdersystem
I I lp/
I I 1 I I
P
I
6 I Steerina and suspension I I I l l I
'I Front and rear wheel bearing Iu-
bricant I I I I
I
8 Supplemental restraint system Inspect every 10 years
85 Revised 9/95
If3 Oli uc ,G(
PERIODIC MAINTENANCE SERVICES [00001 1-5
NOTE:
1) When the vehicle is used under severe driving conditions such as those mentioned be-
low*, the engine oil and filter should be changed every 6,000 km (3,750 miles) or 3.5
months.
2) When the vehicle is used in extremely cold or hot weather areas, contamination of the
filter may occur and filter replacement should be performed more often.
3) When the vehicle is frequently operated under severe driving conditions, replacement
should be performed every 48,000 km (30,000 miles).
4) When the vehicle is frequently operated under severe driving conditions, such as moun-
tain driving replacement should be performed every 24,000 km (15,000 miles).
5) When the vehicle is used in high humidity areas or in mountainous areas, change the
brake fluid every 24,000 km (15,000 miles) or 15 months, whichever occurs first.
6) When the vehicle is used under severe driving conditions such as those mentioned be-
low*, inspectionshould be performedevery 12,000 km (7,500 miles) or 7.5 months, which-
ever occurs first.
7) This inspection is not required to maintain emission warranty eligibility and it does not
affect the manufacturer's obligations under EPA's in-use compliance program.
8) When the vehicle is used in extremely dusty conditions, the air cleaner element should
be replaced more often.
* Examples of severe driving conditions:
(1) Repeated short distance driving. (Items 3, 12 and 13 only)
(2) Driving on rough and/or muddy roads. (Items 12, 13 and 16 only)
(3) Driving in dusty conditions.
(4) Driving in extremely cold weather. (Items 3 and 16 only)
(5) Driving in areas where roads salts or other corrosive materials are used. (Items 6, 12, 13,
14 and 16 only)
(6) Living in coastal areas. (Items 6, 12, 13, 14 and 16 only)
(7) Towing a trailer (Item 3, 4, 10, 12 and 13 only)
86
1-5 [02W PERIODIC MAINTENANCE SERVICES
2. Camshaft Drive Belt (Timing Belt)
I 2. Camshaft Drive Belt
Months 3 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90 97.5 105 112.5 120
xl~~oo 4.8 12 24 36 48 60 72 84 96 108 120 132 144 156 168 180 192
xi'ooo 3 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90 97.5 105 112.5 120
miles
California I* I* I* R
All states
except
California I R I R
and Canada
(2200 cc)
All states
except
California I' I' I' R
and Canada
(2500 cc)
*: This maintenance operation is required for all state except California. However, we do recommend that this operation be per-
formed on Salifornia vehicles as well.
A: REPLACEMENT
2. DOHCMODEL
1) Disconnect ground cable (-) from battery.
87
