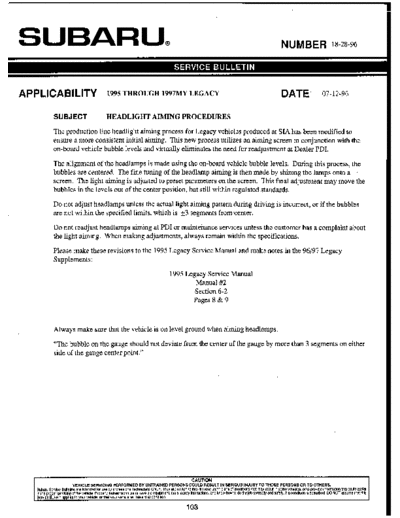

Image preview - the first page of the document
>> Download 18-28-9634440 documenatation <<
Text preview - extract from the document
SUBARU,
SUBJECT HEADLIGHT AIMING PROCEDURES
The production line headlight aiming process for Legacy vehicles produced at SIA has been modified to
ensure a more consistent initial aiming. This new process utilizes an aiming screen in conjunction with the
on-board vehicle bubble levels and virtually eliminates the need for readjustment at Dealer PDI.
The alignment of the headlamps is made using the on-board vehicle bubble levels. During this process, the
bubbles are centered. The fine tuning of the headlamp aiming is then made by shining the lamps onto a I
screen. The light aiming is adjusted to preset parameters on the screen. This final adjustment may move the
bubbles in the levels out of the center position, but still within regulated standards.
Do not adjust headlamps unless the actual light aiming pattern during driving is incorrect, or if the bubbles
are not within the specified limits, which is +3 segments from center.
Do not readjust headlamps aiming at PDI or maintenance services unless the customer has a complaint about
the light aiming. When making adjustments, always remain within the specifications,
Please make these revisions to the 1995 Legacy Service hlanual and make notes in the 96/97 Legacy
Supplements:
1995 Legacy Service Manual
Manual #2
Section 6-2
Pages 8 & 9
Always make sure that the vehicle is on level ground when aiming headlamps.
"The bubble on the gauge should not deviate from the center of the gauge by more than 3 segments on either
side of the gauge center point."
CAUTION
VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
Subaru Service Bulletins are intendedfor use by professional technicians ONLY. They are written lo informthose technicians of conditions lhat may occur in some vehicles, or to provide information that cwid assist
in the Droner servlcina of the vehicle. ProDerivtrained technicians have the equipment.1001s,safety instructions, and know-howlo do the job correctly and safely. If a conditionis described, DO NOT assume that this
I Service duiiettn applies 10 your vehicle, or that your vehicle wiii have thal condition I
103
