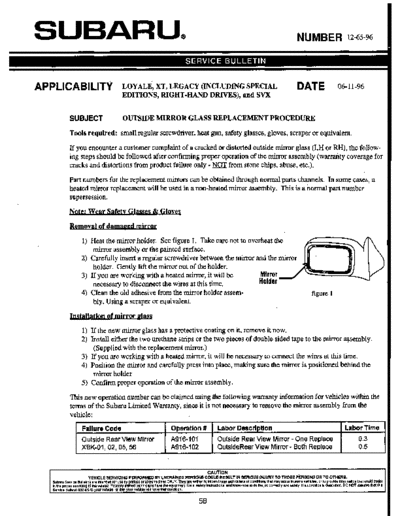

Image preview - the first page of the document

>> Download 12-65-9641089 documenatation <<

Text preview - extract from the document

SUBARU,
APPLlCABlLlTY LOYALE, XT, LEGACY (INCLUDING SPECIAL DATE 06-1 1-96
EDITIONS, RIGHT-HAND DRIVES), and SVX

SUBJECT OUTSIDE MIRROR GLASS REPLACEMENTPROCEDURE
Tools required: small regular screwdriver, heat gun, safety glasses, gloves, scraper or equivalent.
If you encounter a customer complaint of a cracked or distorted outside mirror glass (LH or RH), the follow-
ing steps should be followed after confirming proper operation of the mirror assembly (warranty coverage for
cracks and distortions from product failure only - NOT from stone chips, abuse, etc.).
Part numbers for the replacement mirrors can be obtained through normal parts channels. In some cases, a
heated mirror replacement will be used in a non-heated mirror assembly. This is a normal part number
supersession.
Note: Wear Safetv GlplSses & G l o v ~
Bemoval of
1) Heat the mirror holder. See figure 1. Take care not to overheat the
mirror assembly or the painted surface.
2) Carefully insert a regular screwdriver between the mirror and the mirror
holder. Gently lift the mirror out of the holder.
3) If you are working with a heated mirror, it will be Mirror
necessary to disconnect the wires at this time. Holder
4) Clean the old adhesive from the mirror holder assem- figure 1
bly. Using a scraper or equivalent.

1) If the new mirror glass has a protective coating on it, remove it now.
2) Install either the two urethane strips or the two pieces of double sided tape to the mirror assembly.
(Supplied with the replacement mirror.)
3) If you are working with a heated mirror, it will be necessary to connect the wires at this time,
4) Position the mirror and carefully press into place, making sure the mirror is positioned behind the
mirror holder.
5 ) Confirm proper operation of the mirror assembly.
This new operation number can be claimed using the following warranty information for vehicles within the
terms of the Subaru Limited Warranty, since it is not necessary to remove the mirror assembly from the
vehicle:
Failure Code Operation # Labor Description Labor Time
Outside Rear View Mirror A916-101 Outside Rear View Mirror - One Replace 0.3
XBK-O1,02,05, 56 A916-102 OutsideRear View Mirror - Both Replace 0.5

CAUTION
VEHICLE SERVICING PERFORMED BY UNTRAINED PERSONS COULD RESULT IN SERIOUS INJURY TO THOSE PERSONS OR TO OTHERS.
Subaru Service Bulletins are Intended lor use by professionallechnklana ONLY. They are wrillen lo InIOmthose lechnklana of condltio~ may m u r In some vehkles, or to provlde lnlormatlonthal could asslsl
that
in the proper sewklnp of the vehicle. Properlytrained technklana have the equlpmenl,tods. saleti I ~ l r L c l i oand know-how lo do the job C O N ~ C ~and saleiy. It a condillonI described, DO NOT assume that this
~, ~Y s
Sewke Bulletinapplies to your vehkle. w that your vehkle will have that condition.
