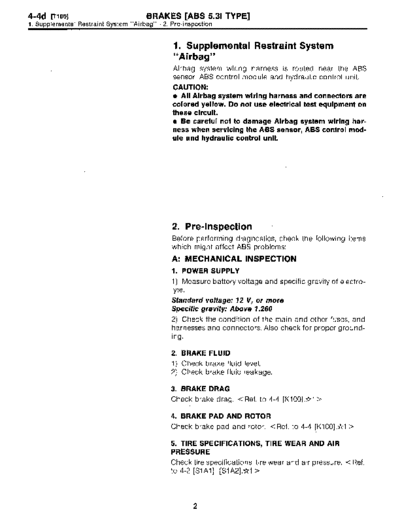

Image preview - the first page of the document

>> Download MSA5T9712A29597 documenatation <<

Text preview - extract from the document

4-4d [T1oo] BRAKES [ABS 5.31 TYPE]
1 . Supplemental Restraint System "Airbag" - 2. Pre-inspection

1 . Supplemental Restraint System
"Airbag"
Airbag system wiring harness is routed near the ABS
sensor, ABS control module and hydraulic control unit .
CAUTION:
All Airbag system wiring harness and connectors are
colored yellow. Do not use electrical test equipment on
these circuit .
e Be careful not to damage Airbag system wiring har-
ness when servicing the ABS sensor, ABS control mod-
ule and hydraulic control unit.

2. Pre-inspection
Before performing diagnostics, check the following items
which might affect ABS problems :
A: MECHANICAL INSPECTION
1 . POWER SUPPLY
1) Measure battery voltage and specific gravity of electro-
lyte .
Standard voltage: 12 V, or more
Specific gravity: Above 1 .260
2) Check the condition of the main and other fuses, and
harnesses and connectors . Also check for proper ground-
ing.

2. BRAKE FLUID
1) Check brake fluid level.
2) Check brake fluid leakage.

3. BRAKE DRAG
Check brake drag . < Ref. to 4-4 [K100] .*1 >

4. BRAKE PAD AND ROTOR
Check brake pad and rotor. < Ref. to 4-4 [K100] .*1 >

5. TIRE SPECIFICATIONS, TIRE WEAR AND AIR
PRESSURE
Check tire specifications, tire wear and air pressure . < Ref.
to 4-2 [S1 A1 ], [S1 A2] .*1 >

2
BRAKES [ABS 5.3i TYPE] [TZBi] 4-4d
2. Pre-inspection

B: ELECTRICAL INSPECTION
1 . WARNING LIGHT ILLUMINATION PATTERN

START
ON r~ ON
OFF
Ignition key switch

Illuminates.

Goes out. Goes out.
ABS warning light
1 .5 s
4 111

B4M0781A

1) When the ABS warning light does not illuminate in
accordance with this illumination pattern, there must be
an electrical malfunction .
2) When the ABS warning light remains constantly OFF,
repair the ABS warning light circuit or diagnosis circuit.

NOTE :
Even though the ABS warning light does not go out 1 .5
seconds after it illuminates, the ABS system operates nor-
mally when the warning light goes out while driving at
approximately 12 km/h (7 MPH) . However, the Anti-lock
brakes do not work while the ABS warning light is illumi-
nated .
