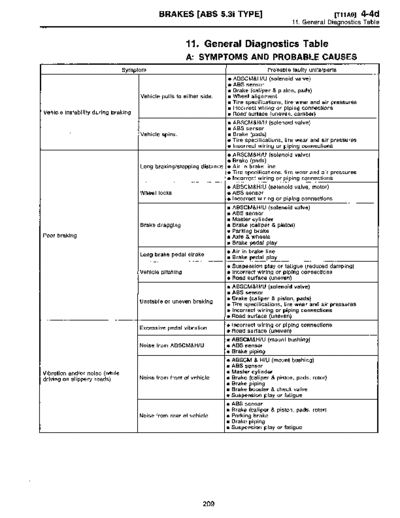

Image preview - the first page of the document
>> Download MSA5T9712A29606 documenatation <<
Text preview - extract from the document
BRAKES [ABS 5.31 TYPE] [T11A0] 4-4d
11 . General Diagnostics Table
11 . General Diagnostics Table
A: SYMPTOMS AND PROBABLE CAUSES
Symptom Probable faulty units/parts
9 ABSCM&H/U (solenoid valve)
e ABS sensor
e Brake (caliper & piston, pads)
Vehicle pulls to either side . * Wheel alignment
e Tire specifications, tire wear and air pressures
9 Incorrect wiring or piping connections
Vehicle instability during braking 9 Road surface (uneven, camber)
e ABSCM&H/U (solenoid valve)
e ABS sensor
Vehicle spins . * Brake (pads)
9 Tire specifications, tire wear and air pressures
9 Incorrect wiring or piping connections
9 ABSCM&H/U (solenoid valve)
Brake (pads)
Long braking/stopping distance * Air in brake line
9 Tire specifications, tire wear and air pressures
a Incorrect wiring or piping connections
9 ABSCM&H/U (solenoid valve, motor)
Wheel locks . * ABS sensor
* Incorrect wiring or piping connections
9 ABSCM&H/U (solenoid valve)
9 ABS sensor
Master cylinder
Brake dragging * Brake (caliper 8 piston)
Parking brake
Poor braking * Axle & wheels
Brake pedal play
9 Air in brake line
Long brake pedal stroke Brake pedal play
* Suspension play or fatigue (reduced damping)
Vehicle pitching * Incorrect wiring or piping connections
Road surface (uneven)
9 ABSCM&H/U (solenoid valve)
9 ABS sensor
Unstable or uneven braking ~ Brake (caliper & piston, pads)
~ Tire specifications, tire wear and air pressures
e Incorrect wiring or piping connections
* Road surface (uneven)
* Incorrect wiring or piping connections
Excessive pedal vibration
Road surface (uneven)
* ABSCM&H/U (mount bushing)
Noise from ABSCM&H/U * ABS sensor
Brake piping
a RBSCM & H/U (mount bushing)
e ABS sensor
Vibration and/or noise (while * Master cylinder
driving on slippery roads) Noise from front of vehicle e Brake (caliper & piston, pads, rotor)
Brake piping
e Brake booster & check valve
* Suspension play or fatigue
e ABS sensor
a Brake (caliper & piston, pads, rotor)
Noise from rear of vehicle 9 Parking brake
Brake piping
e Suspension play or fatigue
209
