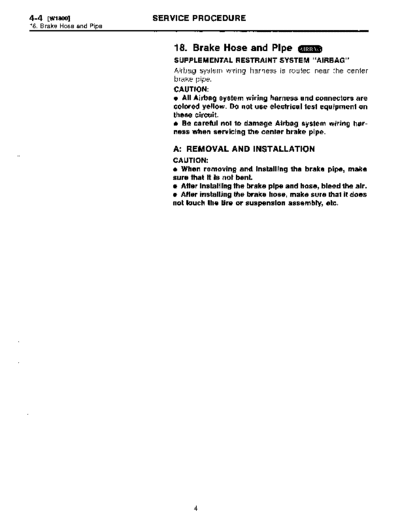

Image preview - the first page of the document



>> Download MSA5T9712A29593 documenatation <<

Text preview - extract from the document

4-4 twisoot                SERVICE PROCEDURE
18 . Brake Hose and Pipe


                               18. Brake Hose and Pipe
                              SUPPLEMENTAL RESTRAINT SYSTEM "AIRBAG"
                              Airbag system wiring harness is routed near the center
                              brake pipe .
                              CAUTION:
                                All Airbag system wiring harness and connectors are
                              colored yellow. Do not use electrical test equipment on
                              these circuit.
                              o Be careful not to damage Airbag system wiring har-
                              ness when servicing the center brake pipe.

                              A : REMOVAL AND INSTALLATION
                              CAUTION:
                                When removing and installing the brake pipe, make
                              sure that it is not bent.
                              " After installing the brake pipe and hose, bleed the air.
                              " After installing the brake hose, make sure that if does
                              not touch the tire or suspension assembly, etc.




                                    4
                              SERVICE PROCEDURE                                    [W18A5] 4-4
                                                                        18 . Brake Hose and Pipe


                                      5. MODELS WITH ABS (ABS 5.3i TYPE)




                                                                                             B4M1221A



                                                                              41'
     Union bolt              (V Two-way connector           Tightening torque : N~m (kg-m, ft-115)
~2   Front brake hose RH        Connector bracket               TI : 13f3 (1 .3f0 .3, 9.4f2 .2)
~3   Clip                    ~o Rear brake hose RH              T2: 15
