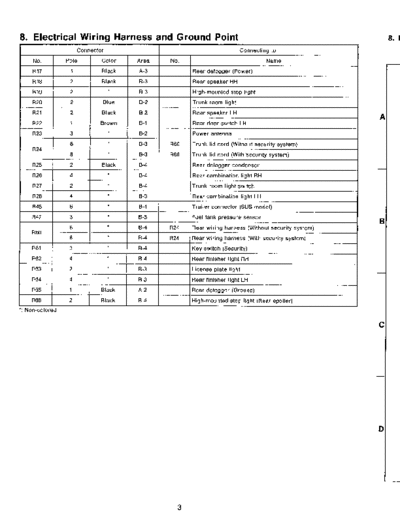

Image preview - the first page of the document
MSA5T9711A29657


>> Download MSA5T9711A29657 documenatation <<

Text preview - extract from the document
8. Electrical Wiring Harness and Ground Point                                                               8. R
                        Connector                                             Connecting to

     No .         Pole          Color     Area   No .                                  Name

     R17            1           Black      A-3          Rear defogger (Power)

     R18           2            Black      B-3          Rear speaker RH
     R19           2                       B-3          High-mounted stop light

     R20           2            Blue       B-2          Trunk room light
     R21           2            Black      B-2          Rear speaker LH
                                                                                                        A
     R22            1           Brown      B-1          Rear door switch LH

     R23           3                       B-2          Power antenna

                   6                       B-3   R60    Trunk lid cord (Without security system)
     R24
                   8                       B-3   R60    Trunk lid cord (With security system)

     R25           2            Black      B-4          Rear defogger condenser
     R26           4                       B-4          Rear combination light RH

     R27           2                       B-4          Trunk room light switch

     R28           4                       B-3          Rear combination light LH

     R45           6                       B-4          Trailer connector (SUS model)

     R47           3                       B-3          Fuel tank pressure sensor
                                                                                                        B
                   6                       B-4   R24    Rear wiring harness (Without security system)
     R60
                   8                       B-4   R24    Rear wiring harness (With security system)
     R61           3                       B-4          Key switch (Security)
     R62           4                       B-4          Rear finisher light RH
     R63           2                       B-3          License plate light
     R64           4                       B-3          Rear finisher light LH
     R65           1            Black     A-2           Rear defogger (Ground)
     R66           2            Black   E B-4           High-mounted stop light (Rear spoiler)
' : Non-colored


                                                                                                        C




                                                                                                        D




                                                    3
