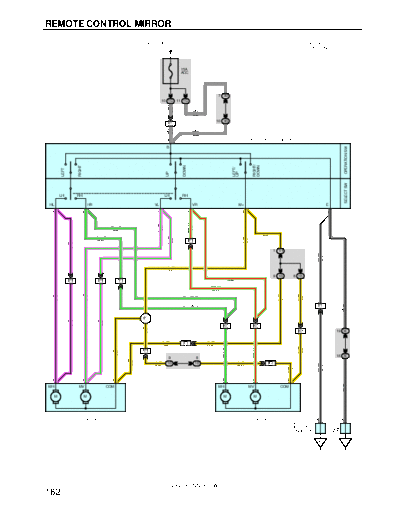

REMOTE CONTROL MIRROR
FROM POWER SOURCE SYSTEM (SEE PAGE 48) * 1 : W/ POWER WINDOW
* 2 : W/O POWER WINDOW
15A
ACC
7 3B
10 1G 11 1G
GR
(* 1)
GR
(*2)
10 3B
14 IF1
(* 1)
GR
GR
R 5 (*2)
(*2) R22 (*1)
9 REMOTE CONTROL MIRROR SW
B
OPERATION SW
RIGHT/
DOWN
DOWN
RIGHT
LEFT/
LEFT
UP
UP
SELECT SW
LH RH LH RH
HL HR VL VR M+ E
5 8 1 7 6 10
LG- R
GR- G
P- G
(* 1)
(* 1)
(* 2) Y- B
GR- G (*2)
P- G
Y- B
(* 2)
(* 1)
(*1) 17 IF1
P- B
(*2)
1 1H
W- B
(* 1)
Y- B
(* 1)
LG- R 9 1B 8 1B
6 IF1 5 IF1 15 IF1 (*2)
LG- R
(* 1)
GR- G(* 2)
P- G
P- B
Y- B
Y- B
(* 1)
(* 1)
(* 2)
(* 2)
GR- G(* 1)
W- B
16 IF1
(* 2)
B1
P- G
P- B
(* 2)
(* 2)
8 IK1 18 IK1
Y- B
(* 1)
9 IK1 19 3E
13
Y- B Y- B
IF1
(*2) (* 2)
Y- B
(*2)
GR- G
LG- R
13 IF1
Y- B
(*1)
16 3E
9 8 9
Y- B Y- B
Y- B
(* 2)
1B 1B IK1
W- B
(* 1)
(* 1) (* 1)
Y- B
(* 1)
1 5 4 1 5 4
W- B
(* 2)
MH MV COM MH MV COM
M M M M
CONNECTOR
R20 R21
REMOTE CONTROL MIRROR LH REMOTE CONTROL MIRROR RH
JUNCTION
A A
J4
JUNCTION
CONNECTOR
J9
IE IF
2002 4RUNNER (EWD471U)
162
SERVICE HINTS
R5, R22 REMOTE CONTROL MIRROR SW
10-GROUND : Always continuity
10-6 : Continuity with operation SW at UP or LEFT position
9-6 : Continuity with operation SW at DOWN or RIGHT position
9-GROUND : Approx. 12 volts with ignition SW at ACC or ON position
: PARTS LOCATION
Code See Page Code See Page Code See Page
J4 31 R5 31 R21 33
J9 31 R20 33 R22 33
,,, : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
,,,
,,,
Code See Page Junction Block and Wire Harness (Connector Location)
1B
1G 24 Cowl Wire and Driver Side J/B (Lower Finish Panel)
( )
1H
3B
26 Cowl Wire and Center J/B (Near the Steering Column Tube)
3E
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
Code See Page Joining Wire Harness and Wire Harness (Connector Location)
IF1 38 Front Door LH Wire and Cowl Wire (Left Kick Panel)
IK1 40 Front Door RH Wire and Cowl Wire (Right Kick Panel)
: GROUND POINTS
Code See Page Ground Points Location
IE 38 Cowl Side Panel LH
IF 38 Cowl Side Panel RH
: SPLICE POINTS
Code See Page Wire Harness with Splice Points Code See Page Wire Harness with Splice Points
B1 42 Front Door LH Wire
2002 4RUNNER (EWD471U)
163
