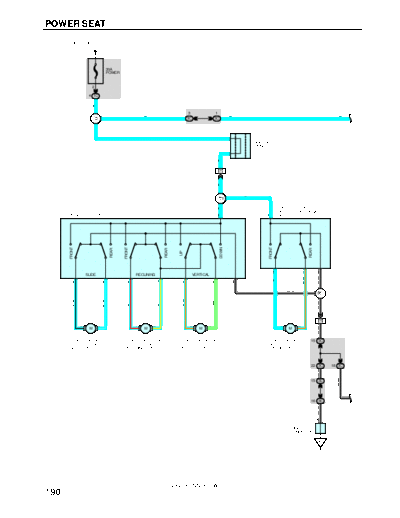

POWER SEAT
FROM POWER SOURCE SYSTEM (SEE PAGE 48)
1
30A
POWER
2
4 1C
L
3 1
L L L
I6 3C 3C
L L C
J10
JUNCTION
CONNECTOR
C
L
1 BY2
L
L
B10
P13
POWER SEAT CONTROL SW
L
P14 (DRIVER' S SEAT LUMBAR
POWER SEAT CONTROL SW (DRIVER' S SIDE) 10 4 SUPPORT)
FRONT
FRONT
FRONT
DOWN
REAR
REAR
REAR
UP
2 1 3
SLIDE RECLINING VERTICAL
W- B
L- O
L
5 8 4 7 2 6 9
W- B
B10
L- W
L- O
L- R
L- B
L- Y
LG
W- B
2 BY2
2 1 1 2 2 1 1 2
W- B
M M M M
P18 P17 P19 P16
POWER SEAT MOTOR POWER SEAT MOTOR POWER SEAT MOTOR POWER SEAT MOTOR 15 3C
(DRIVER' S SEAT (DRIVER' S SEAT (DRIVER' S SEAT (DRIVER' S SEAT
SLIDE CONTROL) RECLINING CONTROL) VERTICAL CONTROL) LUMBAR SUPPORT)
22 3C 18 3C
W- B
W- B
15 3E
16 3E
W- B
A
J9
JUNCTION
CONNECTOR
IF
2002 4RUNNER (EWD471U)
190
L
1 IL1
L
1 BU2
L
P15
5 POWER SEAT CONTROL SW (FRONT PASSENGER' S SIDE)
FRONT
FRONT
REAR
REAR
SLIDE RECLINING
7 8 2 3 4
W- B
L- W
L- R
L- B
L- Y
1 2 2 1
M M
2 BU2
P21 P20
POWER SEAT MOTOR POWER SEAT MOTOR
(FRONT PASSENGER' S (FRONT PASSENGER' S
SEAT SLIDE CONTROL) SEAT RECLINING
CONTROL)
W- B
5 IL1
W- B W- B
2002 4RUNNER (EWD471U)
191
POWER SEAT
SERVICE HINTS
P13 POWER SEAT CONTROL SW (DRIVER'S SEAT LUMBAR SUPPORT)
4-2 : Closed with the driver's seat at lumbar support front operation
4-1 : Closed with the driver's seat at lumbar support rear operation
3-GROUND : Always continuity
P14 POWER SEAT CONTROL SW (DRIVER'S SIDE)
10-5 : Closed with the driver's seat at front slide operation
10-8 : Closed with the driver's seat at rear slide operation
10-4 : Closed with the driver's seat at front reclining operation
10-7 : Closed with the driver's seat at rear reclining operation
10-2 : Closed with the driver's seat at vertical up operation
10-6 : Closed with the driver's seat at vertical down operation
9-GROUND : Always continuity
P15 POWER SEAT CONTROL SW (FRONT PASSENGER'S SIDE)
5-7 : Closed with the front passenger's seat at front slide operation
5-8 : Closed with the front passenger's seat at rear slide operation
5-2 : Closed with the front passenger's seat at front reclining operation
5-3 : Closed with the front passenger's seat at rear reclining operation
4-GROUND : Always continuity
: PARTS LOCATION
Code See Page Code See Page Code See Page
J9 31 P15 34 P19 34
J10 31 P16 34 P20 34
P13 34 P17 34 P21 34
P14 34 P18 34
,,,
,,, : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
,,,
Code See Page Junction Block and Wire Harness (Connector Location)
1C 24 Cowl Wire and Driver Side J/B (Lower Finish Panel)
3C
26 Cowl Wire and Center J/B (Near the Steering Column Tube)
3E
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
Code See Page Joining Wire Harness and Wire Harness (Connector Location)
IL1 40 Cowl Wire and Floor Wire (Right Kick Panel)
BU2 44 Floor Wire and Seat No.2 Wire (Under the Front Passenger's Seat)
BY2 44 Cowl Wire and Seat No.1 Wire (Under the Driver's Seat)
: GROUND POINTS
Code See Page Ground Points Location
IF 38 Cowl Side Panel RH
: SPLICE POINTS
Code See Page Wire Harness with Splice Points Code See Page Wire Harness with Splice Points
I6 40 Cowl Wire B10 44 Seat No.1 Wire
2002 4RUNNER (EWD471U)
