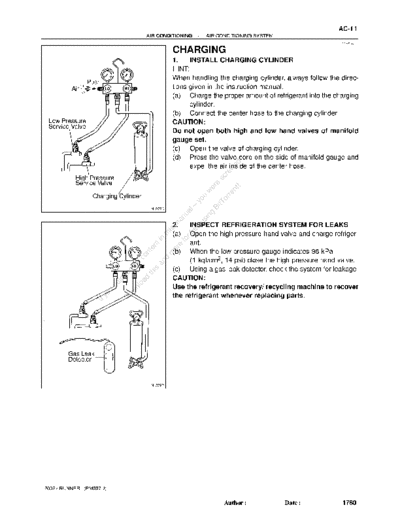

Image preview - the first page of the document



>> Download char documenatation <<

Text preview - extract from the document

                                                                                                           AC-1 1
                                        AIR CONDITIONING          -   AIR CONDITIONING SYSTEM
                                                                                                            AC22G-06


                                                     CHARGING
                                                     1.    INSTALL CHARGING CYLINDER
                                                     HINT:
                                                     When handling the charging cylinder, always follow the direc-
                 Push
         Air                                         tions given in the instruction manual.
                                                     (a) Charge the proper amount of refrigerant into the charging
                                                           cylinder.
                                                     (b) Connect the center hose to the charging cylinder.
 Low Pressure                                        CAUTION:
 Service Valve
                                                     Do not open both high and low hand valves of manifold
                                                     gauge set.
                                                     (c) Open the valve of charging cylinder.
                                                     (d) Press the valve core on the side of manifold gauge and




                                                                                        !
                                                                                      ed
                                                           expel the air inside of the center hose.




                                                                                     w
                                                                                   re
                                                                                 sc
          High Pressure
          Service Valve

                                                                               e
                                                                            er


                                                                             !
                                                                           nt
                                                                          w

                                                                         re
                  Charging Cylinder
                                                                        u

                                                                       or
                                                                      yo

                                                                     tT
                                                                   l
