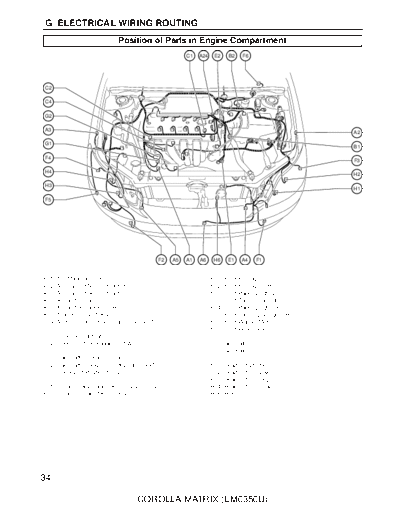

G ELECTRICAL WIRING ROUTING
Position of Parts in Engine Compartment
C1 A24 E2 B2 F6
C2
C4
G2
A3
A2
G1
B1
F4
F3
H4
H2
H3
H1
F5
F2 A5 A1 A6 H6 E1 A4 F1
A 1 A/C Magnetic Clutch F 1 Front Fog Light LH
A 2 ABS Speed Sensor Front LH F 2 Front Fog Light RH
A 3 ABS Speed Sensor Front RH F 3 Front Parking Light LH
A 4 Airbag Sensor Front LH Front Turn Signal Light LH
A 5 Airbag Sensor Front RH F 4 Front Parking Light RH
A 6 Ambient Temp. Sensor Front Turn Signal Light RH
A 24 Air Fuel Ratio Sensor (Bank 1 Sensor 1) F 5 Front Washer Motor
F 6 Front Wiper Motor
