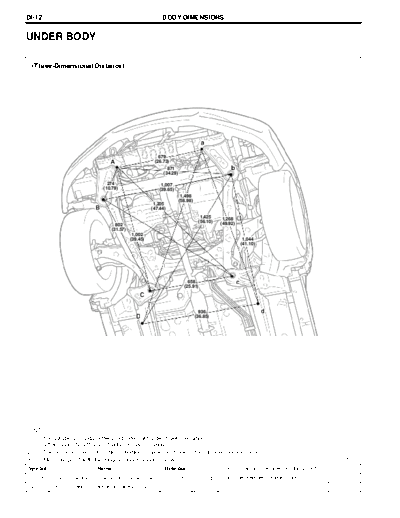

DI-12                                                            BODY DIMENSIONS


UNDER BODY

 (Three-Dimensional Distance)




                                                                679
                                                              (26.73)
                                                                    871
                                                                  (34.29)

                                    274                          1,007
                                  (10.79)                       (39.65)
                                                                             1,498
                                                                            (58.98)
                                                           1,205
                                                          (47.44)
                                                                                        1,425     1,268
                                                                                       (56.10)   (49.92)
                                        802
                                      (31.57)
                                                 1,002
                                                (39.45)                                                     1,044
                                                                                                           (41.10)




                                                                                658
                                                                              (25.91)




                                                                                        936
                                                                                      (36.85)




HINT:
1)    For symbols, capital letters indicate right side of vehicle, small
      letters indicate left side of vehicle (seen from rear).
2)    These values are actual measurements made on model. Use these reference values.
3)    Measure point with the Engine under cover removed.                                                                                     mm (in.)
Symbol                         Name                               Hole dia.             C, c     Front suspension member installation bolt   --
 A, a    Front crossmember reinforcement No.2 standard hole
