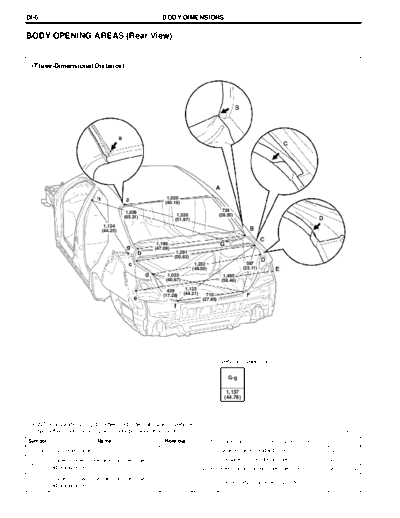

DI-6                                                   BODY DIMENSIONS

BODY OPENING AREAS (Rear View)


 (Three-Dimensional Distance)




                                                          1,020
                                                         (40.16)
                                                                                         724
                                         1,659                                         (28.50)
                                        (65.31)                1,320
                                                              (51.97)
                               1,124
                              (44.25)

                                                     1,196
                                                    (47.09)
                                                               1,291
                                                              (50.83)
                                                                         1,232                       587
                                                                        (48.50)                    (23.11)
                                                          1,033                          1,485
                                                         (40.67)                        (58.46)

                                                          439       1,123
                                                        (17.28)    (44.21)     710
                                                                             (27.95)




                                                                                        Vehicle Dimensions

                                                                                           G-g

                                                                                          1,137
                                                                                         (44.76)




  HINT: For symbols, capital letters indicate right side of vehicle,
  small letters indicate left side of vehicle (seen from rear).                                                                                     mm (in.)
Symbol                       Name                       Hole dia.            D, d      Luggage opening trough / Quarter panel adjoining point       --
 A, a    Roof panel corner                                    --             E, e      Quarter panel standard hole
