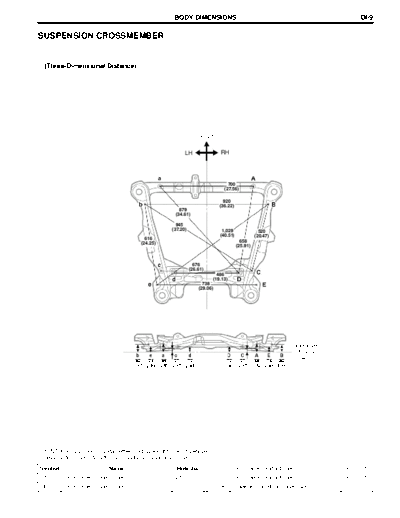

                                                           BODY DIMENSIONS                                                                  DI-9

SUSPENSION CROSSMEMBER


 (Three-Dimensional Distance)




                                                                          Front

                                                                 LH                 RH




                                                                                         700
                                                                                       (27.56)

                                                                                      920
                                                                                    (36.22)
                                                              879
                                                            (34.61)

                                                            945
                                                          (37.20)                    1,029                520
                                                                                    (40.51)             (20.47)
                                           616                                                  658
                                         (24.25)                                              (25.91)



                                                                      676
                                                                    (26.61)
                                                                                   486
                                                                                 (19.13)
                                                                            738
                                                                          (29.06)




                                                                                                                          Imaginary
                                                                                                                          Standard
                                       80     74     89     55     72                  72     55     89     74     80
                                                                                                                          Line
                                     (3.15) (2.91) (3.50) (2.17) (2.83)              (2.83) (2.17) (3.50) (2.91) (3.15)




 HINT: For sysmbols, capital letters indicate right side of vehicle,
 small letters indicate left side of vehicle (seen from rear).                                                                           mm (in.)
Symbol                      Name                            Hole dia.           C, c       Front frame standard hole
