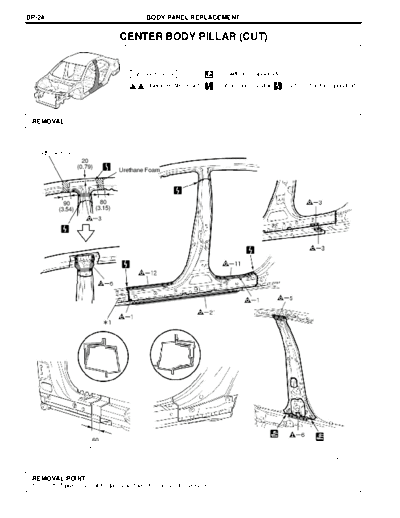

Image preview - the first page of the document
>> Download centerbo documenatation <<
Text preview - extract from the document
BP-24 BODY PANEL REPLACEMENT
CENTER BODY PILLAR (CUT)
Symbol meaning : Cut with disc sander, etc.
: Remove Weld Points : Cut and Join Location : Cut Location for Supply Parts
F25726A F25726B
REMOVAL
Urethane Foam
20
(0.79)
Urethane Foam
90 80
(3.54) (3.15)
60
(2.36)
mm (in.)
F25726
REMOVAL POINT
1 *1: Take care not to damage the internal reinforcement.
BODY PANEL REPLACEMENT BP-25
Symbol meaning
: MIG Plug Weld : Cut and Join Location
: Tack Weld : Butt Weld
F25727B
INSTALLATION
Center Body Pillar Lower Reinforce
310
(12.20)
Center Body Pillar Upper Reinforce
Center Body Inner Pillar
mm (in.)
F25727
INSTALLATION POINT
1 Before temporarily installing the new parts, weld the center body pillar lower reinforce, center body pillar upper
reinforce and center body inner pillar with the standard number of welding points.
BP-26 BODY PANEL REPLACEMENT
Symbol meaning
: MIG Plug Weld : Cut and Join Location
: Tack Weld : Butt Weld
F25727B
Center Body Pillar
Upper Reinforce
Center Body
Inner Pillar
Roof Side Outer No.2 Rail
Urethane Foam Urethane Foam
12 (0.47)
Center Body Pillar Lower Reinforce
Center Body Outer Pillar
mm (in.)
F25728
INSTALLATION POINT
1 Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
finish.
2 Temporarily install the new parts and measure each part of the new parts in accordance with the body
dimension diagram. (See the body dimension diagram)
3 After welding the center body pillar lower reinforce, center body pillar upper reinforce and center body inner
pillar to thevehicle side, install the center body outer pillar and roof side outer No.2 rail.
BODY PANEL REPLACEMENT BP-27
20
(0.79)
F25808
INSTALLATION POINT
1 Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.
2 Temporarily install the new parts and measure each part of the new parts in accordance with the body
dimension diagram. (See the body dimension diagram)
3 After welding, apply the polyurethane foam to the corresponding parts. (See the paint.coating)
4 After welding, apply body sealer and undercoating to the corresponding parts. (See the paint.coating)
5 After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural
weld points.
