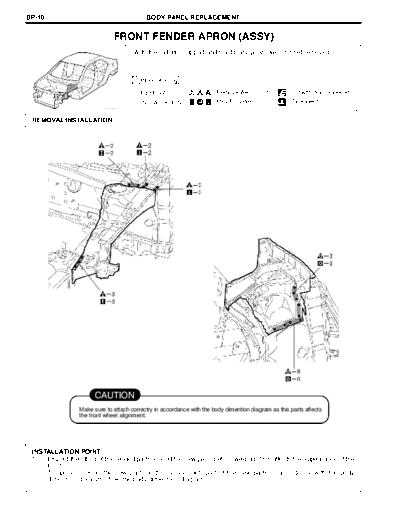

Image preview - the first page of the document



>> Download front documenatation <<

Text preview - extract from the document

BP-10                                      BODY PANEL REPLACEMENT


                              FRONT FENDER APRON (ASSY)
                                      With the radiator support and front body pillar lower gusset removed.



                                       Symbol meaning

                                         REMOVAL                      : Remove Weld Points          : Cut with disc sander, etc.
                                         INSTALLATION                 : MIG Plug Weld               : Tack Weld
                           F25710A                                                                                         F25710B

 REMOVAL.INSTALLATION




                       CAUTION
                 Make sure to attach correctry in accordance with the body dimention diagram as this parts affects
                 the front wheel alignment.



                                                                                                                            F25710

 INSTALLATION POINT
 1   Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
     finish.
 2   Temporarily install the new parts and measure each part of the new parts in accordance with the body
     dimension diagram. (See the body dimension diagram)
                                             BODY PANEL REPLACEMENT                                                       BP-11




                                        6
                                      (0.24)



                                      15
                                    (0.59)



                   6
                 (0.24)




                       CAUTION                                                                                       mm (in.)

                 Make sure to attach correctry in accordance with the body dimention diagram as this parts affects
                 the front wheel alignment.

                                                                                                                           F25711

INSTALLATION POINT
1   Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
    finish.
2   Temporarily install the new parts and measure each part of the new parts in accordance with the body
    dimension diagram. (See the body dimension diagram)
3   After welding, apply body sealer and undercoating to the corresponding parts. (See the paint.coating)
4   After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural
    weld points.
