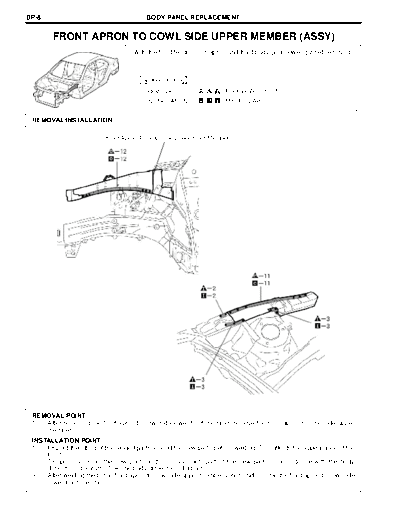

BP-8                                      BODY PANEL REPLACEMENT


        FRONT APRON TO COWL SIDE UPPER MEMBER (ASSY)
                                     With the front fender front apron and front body pillar lower gusset removed.



                                        Symbol meaning

                                          REMOVAL                    : Remove Weld Points
                                          INSTALLATION               : MIG Plug Weld
                           F25709A                                                                               F25709B

 REMOVAL.INSTALLATION

                           Front Apron To Cowl Side Lower Front Member




                                                                                                                  F25709

 REMOVAL POINT
 1  After removing the front apron to cowl side lower front member, remove the front apron to cowl side upper
    member.
 INSTALLATION POINT
 1   Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
     finish.
 2   Temporarily install the new parts and measure each part of the new parts in accordance with the body
     dimension diagram. (See the body dimension diagram)
 3   After welding the to the front apron to cowl side upper member vehicle side, install the front apron to cowl side
     lower front member.
                                         BODY PANEL REPLACEMENT                                                  BP-9




                                                                                                                 F25805

INSTALLATION POINT
1   Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
    finish.
2   Temporarily install the new parts and measure each part of the new parts in accordance with the body
    dimension diagram. (See the body dimension diagram)
3   After welding, apply body sealer and undercoating to the corresponding parts. (See the paint.coating)
4   After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural
    weld points.
