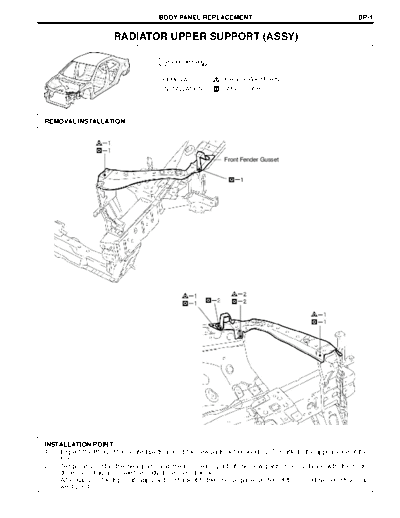

BODY PANEL REPLACEMENT BP-1
RADIATOR UPPER SUPPORT (ASSY)
Symbol meaning
REMOVAL : Remove Weld Points
INSTALLATION : MIG Plug Weld
F25701A F25701B
REMOVAL.INSTALLATION
Front Fender Gusset
F25701
INSTALLATION POINT
1 Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
finish.
2 Temporarily install the new parts and measure each part of the new parts in accordance with the body
dimension diagram. (See the body dimension diagram)
3 After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural
weld points.
