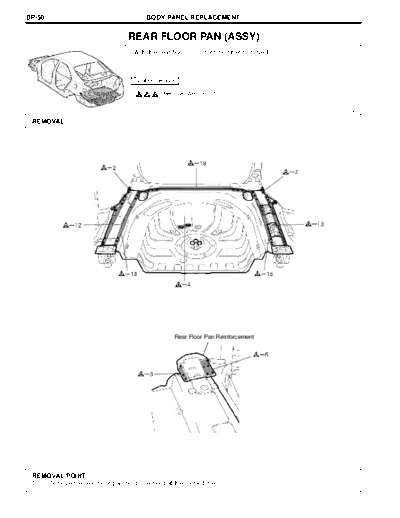

Image preview - the first page of the document



>> Download rearf documenatation <<

Text preview - extract from the document

BP-50                                  BODY PANEL REPLACEMENT


                                   REAR FLOOR PAN (ASSY)
                                   With the rear floor no.3 crossmember removed.



                                   Symbol meaning

                                           : Remove Weld Points

                         F25747A                                                   F25747B

 REMOVAL




                                                Rear Floor Pan Reinforcement




                                                                                    F26001

 REMOVAL POINT
 1  Remove the rear floor pan reinforcement at the same time.
             BODY PANEL REPLACEMENT   BP-51




      [LH]




                   [RH]




LH:




                                      F26002
BP-52                                     BODY PANEL REPLACEMENT




    Symbol meaning

             : MIG Plug Weld         : Tack Weld


                                                                                                                       F25749B

 INSTALLATION




                               Spare Wheel Carrier Bracket         Fuel Tube No.3 Bracket

             Rear Floor Mounting No.2 Bracket                                       Rear Floor Pan Reinforcement




                                                                                              Floor Side Front Plate




                                                   Rear Floor Pan Reinforcement




                                                                                                                        F26003

 INSTALLATION POINT
 1   Before temporarily installing the new parts, weld the spare wheel carrier bracket, fuel tube No.3 bracket, rear
     floor mounting No.2 bracket, rear floor pan reinforcement and floor side front plate with the standard number of
     welding points.
BODY PANEL REPLACEMENT                  BP-53




         Rear Floor Pan Reinforcement




                                        F26004
BP-54                                     BODY PANEL REPLACEMENT




    Symbol meaning

              : MIG Plug Weld       : Tack Weld


                                                                                                                 F25749B


   [LH]




                                                       [RH]




 LH:




                                                                                                                  F26005

 INSTALLATION POINT
 1   After welding, apply body sealer and undercoating to the corresponding parts. (See the paint.coating)
 2   After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural
     weld points.
