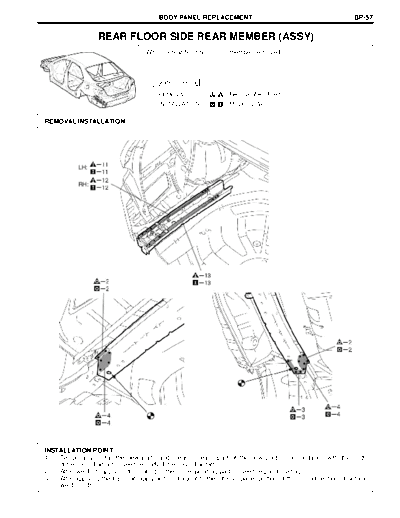

BODY PANEL REPLACEMENT BP-57
REAR FLOOR SIDE REAR MEMBER (ASSY)
With the rear floor no.3 crossmember removed.
Symbol meaning
REMOVAL : Remove Weld Points
INSTALLATION : MIG Plug Weld
F25752A F25752B
REMOVAL.INSTALLATION
LH:
RH:
F25752
INSTALLATION POINT
1 Temporarily install the new parts and measure each part of the new parts in accordance with the body
dimension diagram. (See the body dimension diagram)
2 After welding, apply undercoating to the corresponding parts. (See the paint.coating)
3 After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural
weld points.
