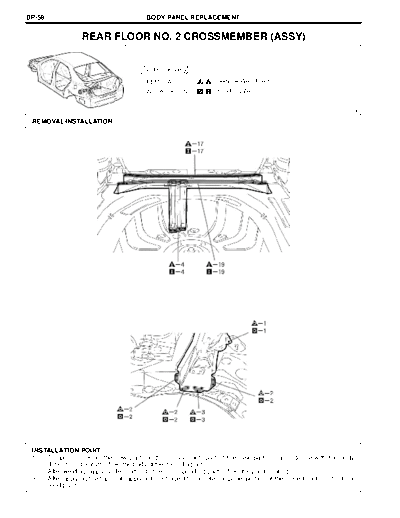

Image preview - the first page of the document
>> Download rearf2 documenatation <<
Text preview - extract from the document
BP-58 BODY PANEL REPLACEMENT
REAR FLOOR NO. 2 CROSSMEMBER (ASSY)
Symbol meaning
REMOVAL : Remove Weld Points
INSTALLATION : MIG Plug Weld
F25753A F25753B
REMOVAL.INSTALLATION
F25753
INSTALLATION POINT
1 Temporarily install the new parts and measure each part of the new parts in accordance with the body
dimension diagram. (See the body dimension diagram)
2 After welding, apply undercoating to the corresponding parts. (See the paint.coating)
3 After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural
weld points.
