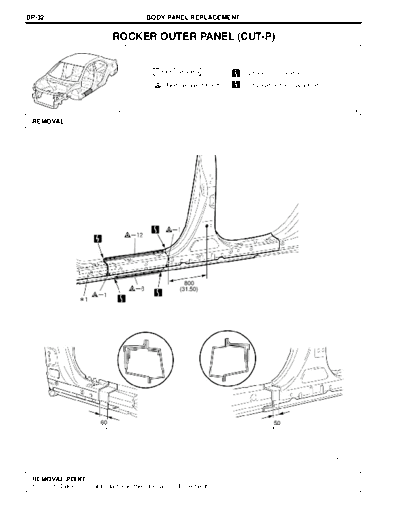

BP-32 BODY PANEL REPLACEMENT
ROCKER OUTER PANEL (CUT-P)
Symbol meaning : Cut and Join Location
: Remove Weld Points : Cut Location for Supply Parts
F25729A F25729B
REMOVAL
800
(31.50)
60 50
(2.36) (1.97)
mm (in.)
F25729
REMOVAL POINT
1 *1: Take care not to damage the internal reinforcement.
BODY PANEL REPLACEMENT BP-33
Symbol meaning
: MIG Plug Weld : Cut and Join Location : Butt Weld
F25730B
INSTALLATION
Center Body Pillar Lower Reinforce
Center Body Outer Pillar
mm (in.)
F25730
INSTALLATION POINT
1 Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
finish.
2 Temporarily install the new parts and measure each part of the new parts in accordance with the body
dimension diagram. (See the body dimension diagram)
3 After welding the center body pillar lower reinforce to the vehicle side, install the center body outer pillar.
4 After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural
weld points.
