                        SERVICE INDICATOR & WARNING LIGHTS

                                      1988 Toyota Celica




         1986-89 MAINTENANCE
         Toyota Service Indicator & Warning Lights

         Celica

    SERVICE INDICATOR & WARNING LIGHTS

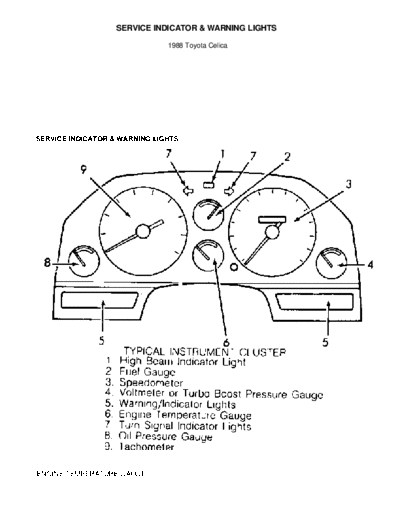

Fig. 1: Dash Gauges & Warning Lights
Courtesy of Toyota Motor Sales, U.S.A., Inc.

    ENGINE TEMPERATURE GAUGE
         Indicates engine coolant temperature. Gauge should register
below "HOT" range while driving.

    OIL PRESSURE WARNING LIGHT
         If light flickers or comes on while driving, oil pressure is
low. If this occurs, stop the vehicle immediately and check the oil
level. If oil level is okay and light remains on, have the system
serviced as soon as possible.

    VOLTMETER
         If the gauge registers below the normal range for an extended
period, check the alternator belt tension. If belt tension is okay,
have the system serviced as soon as possible.

    DISCHARGE WARNING LIGHT
         Indicates that the battery is not charging properly. Check
the alternator belt tension. If belt tension is okay, have the system
serviced as soon as possible.

    BRAKE SYSTEM WARNING LIGHT
         This light indicates that either the parking brake is on or
the brake fluid level is low.

    ANTI-LOCK BRAKE SYSTEM (ABS) WARNING LIGHT
         If this light comes on while driving, there is a malfunction
in the ABS. Have the ABS serviced as soon as possible.

    ENGINE SYSTEM WARNING LIGHT
         If this light comes on while driving, it indicates a problem
with the engine electrical system. On California vehicles, it also
indicates a malfunction in the emission control system and may be used
to access fault codes. Have the system serviced as soon as possible.

    REAR LIGHT FAILURE WARNING LIGHT
         If light comes on while engine is running, there is a bulb
failure in one of the taillights. Replace the defective bulb as soon
as possible.

    TURBO BOOST PRESSURE GAUGE
         Indicates boost pressure in the turbocharging system. DO NOT
drive with the pressure above the normal range for extended periods.
Continuous pressures above the normal range can cause engine damage.

    SUPPLEMENTAL RESTRAINT SYSTEM (SRS) WARNING LIGHT
         If this light comes on while driving, there is a malfunction
is the Supplemental Restraint System (SRS). Have the system serviced
as soon as possible.
