                                  JACKING & HOISTING

                                      1994 Toyota Celica




        1994 WHEEL ALIGNMENT
        Toyota - Jacking & Hoisting

        Camry, Celica, Corolla

    JACKING & HOISTING

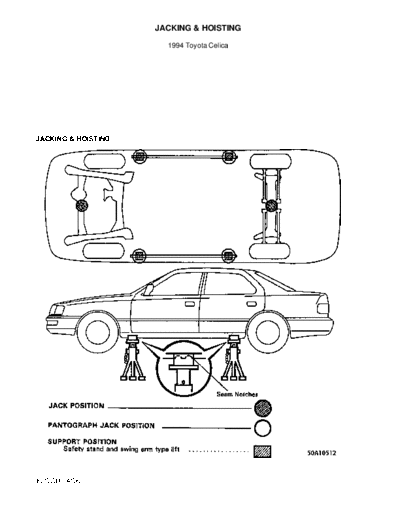

Fig. 1: Jacking & Hoisting Support Points (Typical)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

    FLOOR JACK
         To raise vehicle front, place floor jack under center of
front longitudinal engine crossmember. For vehicle rear, place floor
jack under rear suspension crossmember. See Fig. 1.

    EMERGENCY JACKING
         Place emergency jack on reinforced support points of side
body panel (between front and rear wheels). Safety stands may also be
placed at these points. See Fig. 1.

    LIFTING VEHICLE WITH HOIST
         Place lift blocks on reinforced support points of side body
panel (between front and rear wheels). Safety stands may also be
placed at these points. See Fig. 1.
