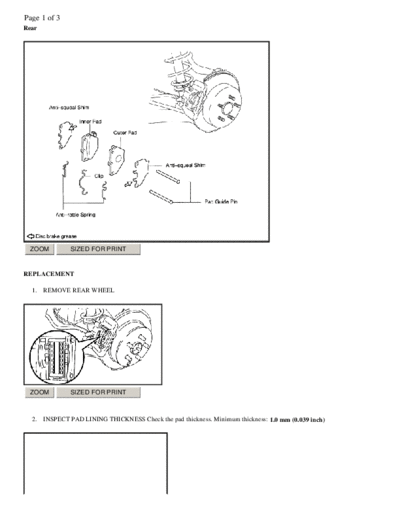

Page 1 of 3
Rear




 ZOOM          SIZED FOR PRINT


REPLACEMENT

  1.   REMOVE REAR WHEEL




 ZOOM          SIZED FOR PRINT



  2.   INSPECT PAD LINING THICKNESS Check the pad thickness. Minimum thickness: 1.0 mm (0.039 inch)
Page 2 of 3




 ZOOM            SIZED FOR PRINT



  3.   REMOVE CLIP, 2 ANTI-RATTLE SPRINGS AND 2 PAD GUIDE PINS

          a.   Using a screwdriver, remove the clip and 2 anti-rattle springs. NOTICE:
