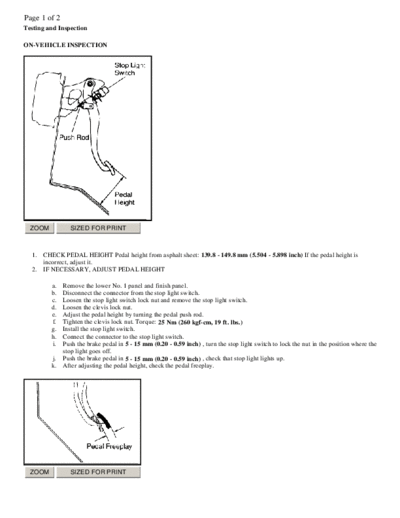

Image preview - the first page of the document



>> Download ARTICLE_BRAKES_PEDAL_ASSEMBLY_SERVICE documenatation <<

Text preview - extract from the document

Page 1 of 2
Testing and Inspection

ON-VEHICLE INSPECTION




  ZOOM           SIZED FOR PRINT



  1.   CHECK PEDAL HEIGHT Pedal height from asphalt sheet: 139.8 - 149.8 mm (5.504 - 5.898 inch) If the pedal height is
       incorrect, adjust it.
  2.   IF NECESSARY, ADJUST PEDAL HEIGHT

          a. Remove the lower No. 1 panel and finish panel.
          b. Disconnect the connector from the stop light switch.
          c. Loosen the stop light switch lock nut and remove the stop light switch.
          d. Loosen the clevis lock nut.
          e. Adjust the pedal height by turning the pedal push rod.
          f. Tighten the clevis lock nut. Torque: 25 Nm (260 kgf-cm, 19 ft. lbs.)
          g. Install the stop light switch.
          h. Connect the connector to the stop light switch.
          i. Push the brake pedal in 5 - 15 mm (0.20 - 0.59 inch) , turn the stop light switch to lock the nut in the position where the
             stop light goes off.
          j. Push the brake pedal in 5 - 15 mm (0.20 - 0.59 inch) , check that stop light lights up.
          k. After adjusting the pedal height, check the pedal freeplay.




  ZOOM           SIZED FOR PRINT
Page 2 of 2
  3.   CHECK PEDAL FREEPLAY

          a.   Stop the engine and depress the brake pedal several times until there is no more vacuum left in the booster.
          b.   Push in the pedal until the beginning of the resistance is felt. Measure the distance, as shown. Pedal freeplay: 1 - 6 mm
               (0.04 - 0.24 inch) If incorrect, check the stop light switch clearance. If the clearance is OK, then troubleshoot the brake
               system. Stop light switch clearance: 0.5 - 2.4 mm (0.020 - 0.094 inch)




 ZOOM            SIZED FOR PRINT



  4.   CHECK PEDAL RESERVE DISTANCE Release the parking brake lever. With engine running, depress the pedal and
       measure the pedal reserve distance, as shown. Pedal reserve distance from asphalt sheet at 490 N (50 kgf, 110.2 lbs) : More
       than 85 mm (3.35 inch) If incorrect, troubleshoot the brake system.
