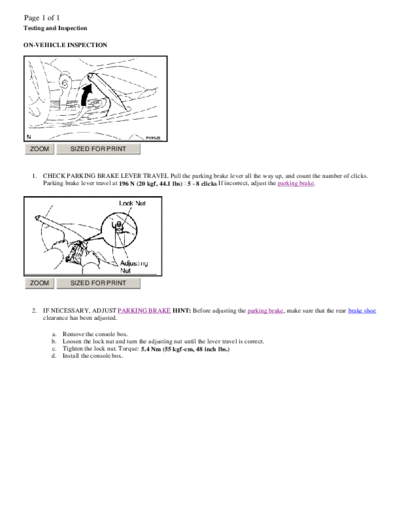

ARTICLE_PBRAKE_INSPECTION_INTERNAL


>> Download ARTICLE_PBRAKE_INSPECTION_INTERNAL documenatation <<

Text preview - extract from the document
Page 1 of 1
Testing and Inspection

ON-VEHICLE INSPECTION




  ZOOM          SIZED FOR PRINT



  1.   CHECK PARKING BRAKE LEVER TRAVEL Pull the parking brake lever all the way up, and count the number of clicks.
       Parking brake lever travel at 196 N (20 kgf, 44.1 lbs) : 5 - 8 clicks If incorrect, adjust the parking brake.




  ZOOM          SIZED FOR PRINT



  2.   IF NECESSARY, ADJUST PARKING BRAKE HINT: Before adjusting the parking brake, make sure that the rear brake shoe
       clearance has been adjusted.

         a. Remove the console box.
         b. Loosen the lock nut and turn the adjusting nut until the lever travel is correct.
         c. Tighten the lock nut. Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
         d. Install the console box.
