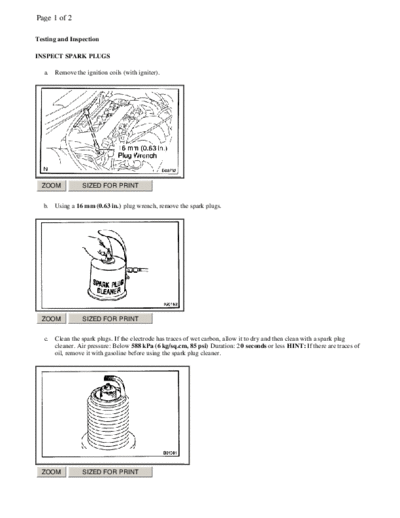

Image preview - the first page of the document
ARTICLE_ENGINE_SPARK_PLUG_REPLACEMENT


>> Download ARTICLE_ENGINE_SPARK_PLUG_REPLACEMENT documenatation <<

Text preview - extract from the document
Page 1 of 2

Testing and Inspection

INSPECT SPARK PLUGS

   a.   Remove the ignition coils (with igniter).




  ZOOM            SIZED FOR PRINT


  b.    Using a 16 mm (0.63 in.) plug wrench, remove the spark plugs.




  ZOOM            SIZED FOR PRINT


   c.   Clean the spark plugs. If the electrode has traces of wet carbon, allow it to dry and then clean with a spark plug
        cleaner. Air pressure: Below 588 kPa (6 kg/sq.cm, 85 psi) Duration: 2 0 seconds or less HINT: If there are traces of
        oil, remove it with gasoline before using the spark plug cleaner.




  ZOOM            SIZED FOR PRINT
Page 2 of 2


  d.   Check the spark plug for thread damage and insulator damage. If abnormal, replace the spark plug. Recommended
       spark plug: DENSO made SK16R11 NGK made IFR54A11




 ZOOM           SIZED FOR PRINT


  e. Adjust electrode gap. Carefully bend the outer electrode to obtain the correct electrode gap. Electrode gap: 1.1 mm
     (0.043 in.)
  f. Using a 16 mm (0.63 in.) plug wrench, install the spark plugs. Torque: 18 Nm (184 kg.cm, 13 ft.lb)
  g. Install the ignition coils (with igniter).
