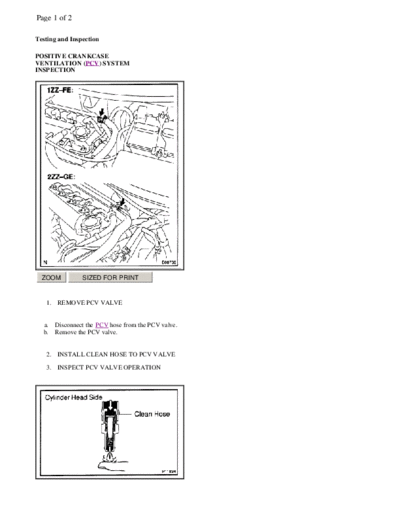

Image preview - the first page of the document
ARTICLE_ENGINE_PCV_VALVE_CHECK


>> Download ARTICLE_ENGINE_PCV_VALVE_CHECK documenatation <<

Text preview - extract from the document
Page 1 of 2

Testing and Inspection

POSITIVE CRANKCASE
VENTILATION (PCV) SYSTEM
INSPECTION




  ZOOM          SIZED FOR PRINT


   1. REMOVE PCV VALVE


  a.   Disconnect the PCV hose from the PCV valve.
  b.   Remove the PCV valve.


   2. INSTALL CLEAN HOSE TO PCV VALVE

   3. INSPECT PCV VALVE OPERATION
Page 2 of 2


 ZOOM            SIZED FOR PRINT


  a.   Blow air into the cylinder head side, and check that air passes through easily. CAUTION: Do not suck air through the
       valve. Petroleum substances inside the valve are harmful.




 ZOOM            SIZED FOR PRINT



  b.   Blow air into the intake manifold side, and check that air passes through with difficulty. If operation is not as
       specified, replace the PCV valve.


   4. REMOVE CLEAN HOSE FROM PCV VALVE

   5. REINSTALL PCV VALVE




 ZOOM            SIZED FOR PRINT




   6. VISUALLY INSPECT HOSES, CONNECTIONS AND GASKETS

       Check for cracks, leaks or damage.
