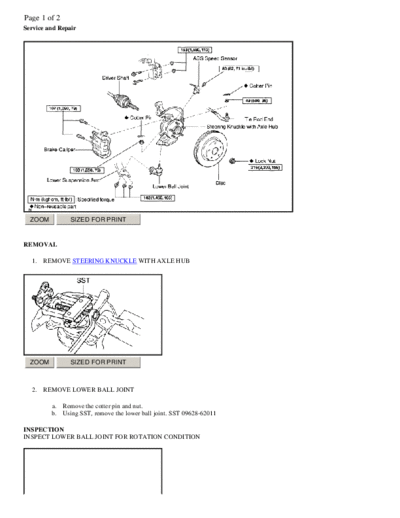

Image preview - the first page of the document
>> Download ARTICLE_SUSPENSION_LOWER_BALL_JOINT_SERVICE documenatation <<
Text preview - extract from the document
Page 1 of 2
Service and Repair
ZOOM SIZED FOR PRINT
REMOVAL
1. REMOVE STEERING KNUCKLE WITH AXLE HUB
ZOOM SIZED FOR PRINT
2. REMOVE LOWER BALL JOINT
a. Remove the cotter pin and nut.
b. Using SST, remove the lower ball joint. SST 09628-62011
INSPECTION
INSPECT LOWER BALL JOINT FOR ROTATION CONDITION
Page 2 of 2
ZOOM SIZED FOR PRINT
a. As shown in the illustration, flip the ball joint stud back and forth 5 times, before installing the nut.
b. Using a torque wrench, turn the nut continuously at a rate of 2 - 4 seconds per 1 turn and take the torque reading on the 5th
turn. Turning torque: 1.0 - 4.9 Nm (10 - 50 kgf.cm, 8.7 - 43 inch lbs.)
INSTALLATION
ZOOM SIZED FOR PRINT
1. INSTALL LOWER BALL JOINT
a. Install the lower ball joint and tighten the nut. Torque: 103 Nm (1,050 kgf.cm, 76 ft. lbs.)
b. Install a new cotter pin. If the holes for the cotter pin are not aligned, tighten the nut further up to 60◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
