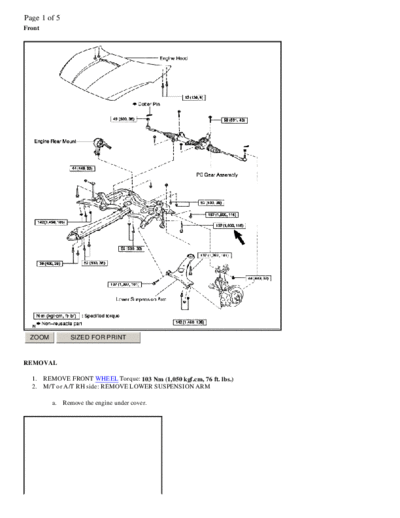

Image preview - the first page of the document
ARTICLE_SUSPENSION_LOWER_CONTROL_ARM_FRONT_SERVICE


>> Download ARTICLE_SUSPENSION_LOWER_CONTROL_ARM_FRONT_SERVICE documenatation <<

Text preview - extract from the document
Page 1 of 5
Front




  ZOOM           SIZED FOR PRINT



REMOVAL

  1.    REMOVE FRONT WHEEL Torque: 103 Nm (1,050 kgf.cm, 76 ft. lbs.)
  2.    M/T or A/T RH side: REMOVE LOWER SUSPENSION ARM

          a.   Remove the engine under cover.
Page 2 of 5




 ZOOM           SIZED FOR PRINT



         b.   Remove the bolt and 2 nuts, and disconnect the lower suspension arm from the lower ball joint. Torque: 142 Nm (1,450
              kgf.cm, 105 ft. lbs.)




 ZOOM           SIZED FOR PRINT



         c.   Remove the 2 bolts, nut and lower suspension arm. Torque: 137 Nm (1,397 kgf.cm, 101 ft. lbs.) HINT: At the time of
              installation, after stabilizing the suspension, torque the bolts.

  3.   A/T LH side: REMOVE LOWER SUSPENSION ARM

         a.   Remove the engine under covers.




 ZOOM           SIZED FOR PRINT



         b.   Disconnect the RH and LH tie rod ends.

                 1.   Remove the cotter pin and nut. Torque: 49 Nm (500 kgf.cm, 36 ft. lbs.) HINT: At the time of installation, if
                      the holes for a new cotter pin are not aligned, tighten the nut further up to 60
