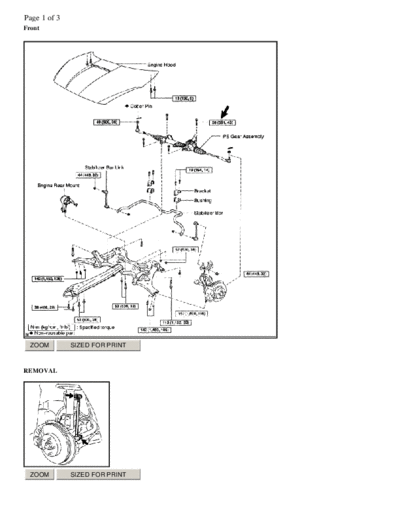

Image preview - the first page of the document



>> Download ARTICLE_SUSPENSION_STABILIZER_BAR_FRONT_SERVICE documenatation <<

Text preview - extract from the document

Page 1 of 3
Front




  ZOOM        SIZED FOR PRINT



REMOVAL




  ZOOM        SIZED FOR PRINT
Page 2 of 3

   1.   REMOVE STABILIZER BAR LINKS

           a.   Remove the 2 nuts and stabilizer bar link. Torque: 44 Nm (449 kgf.cm, 32 ft. lbs.) HINT: If the ball joint turns
                together with the nut, use a hexagon (5 mm) wrench to hold the stud.
           b.   Employ the same manner described above to the other side.

   2.   REMOVE FRONT SUSPENSION MEMBER WITH LOWER SUSPENSION ARM




  ZOOM             SIZED FOR PRINT



   3.   REMOVE STABILIZER BAR

           a.   Remove the 2 bolts, bracket and bushing. Torque: 19 Nm (194 kgf.cm, 14 ft. lbs.) HINT: At the time of installation,
                please refer to the following items.
