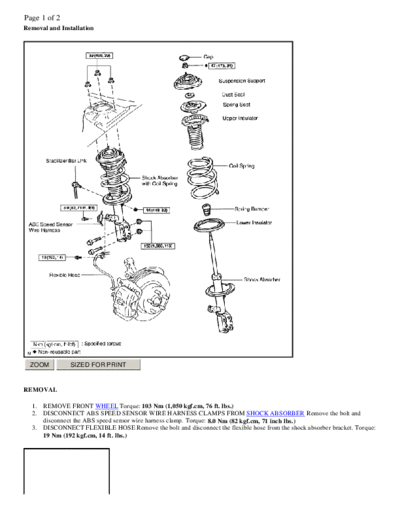

Removal and Installation




  ZOOM          SIZED FOR PRINT


REMOVAL

  1.   REMOVE FRONT WHEEL Torque: 103 Nm (1,050 kgf.cm, 76 ft. lbs.)
  2.   DISCONNECT ABS SPEED SENSOR WIRE HARNESS CLAMPS FROM SHOCK ABSORBER Remove the bolt and
       disconnect the ABS speed sensor wire harness clamp. Torque: 8.0 Nm (82 kgf.cm, 71 inch lbs.)
  3.   DISCONNECT FLEXIBLE HOSE Remove the bolt and disconnect the flexible hose from the shock absorber bracket. Torque:
       19 Nm (192 kgf.cm, 14 ft. lbs.)
Page 2 of 2




  ZOOM            SIZED FOR PRINT



   4.   DISCONNECT STABILIZER BAR LINK Remove the nut and disconnect the stabilizer bar link from the shock absorber.
        Torque: 44 Nm (449 kgf.cm, 32 ft. lbs.) HINT: If the ball joint turns together with the nut, use a hexagon (5 mm) wrench to
        hold the stud.




  ZOOM            SIZED FOR PRINT



   5.   REMOVE SHOCK ABSORBER WITH COIL SPRING

           a. Loosen the 2 nuts on the lower side of shock absorber. Torque: 153 Nm (1,560 kgf.cm, 113 ft. lbs.) HINT: Do not
              remove the 2 bolts.
           b. Remove the 3 nuts on the upper side of the shock absorber. Torque: 39 Nm (400 kgf.cm, 29 ft. lbs.)
           c. Remove the 2 nuts and bolts on the lower side of shock absorber. HINT: At the time of installation, coat the nut's
              thread with engine oil.
           d. Remove the shock absorber with coil spring.

INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check the front wheel alignment.
