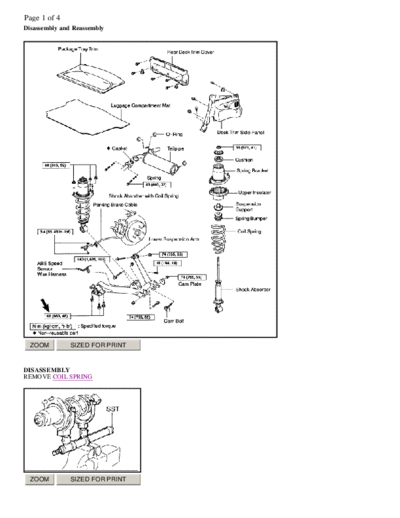

Image preview - the first page of the document
ARTICLE_SUSPENSION_STRUT_REAR_DISASSEMBLE_REASSEMBLE


>> Download ARTICLE_SUSPENSION_STRUT_REAR_DISASSEMBLE_REASSEMBLE documenatation <<

Text preview - extract from the document
Page 1 of 4
Disassembly and Reassembly




  ZOOM         SIZED FOR PRINT


DISASSEMBLY
REMOVE COIL SPRING




  ZOOM         SIZED FOR PRINT
Page 2 of 4

   a.   Using SST, compress the coil spring. SST 09727-30021 (09727-00010, 09727-00021, 09727-00031) NOTICE: Do not use an
        impact wrench. It will damage the SST




  ZOOM            SIZED FOR PRINT



   b.   Using a 6 mm hexagon wrench to hold the piston rod, remove the nut.
   c.   Remove the washer, cushion, spring bracket, upper insulator, suspension support, spring bumper and coil spring.

INSPECTION
INSPECT SHOCK ABSORBER




  ZOOM            SIZED FOR PRINT


Compress and extend the shock absorber rod and check that there is no abnormal resistance or unusual sound during operation. If there
is any abnormality, replace the shock absorber with a new one.

NOTICE: When disposing of the shock absorber, see DISPOSAL.

DISPOSAL

   1.   FULLY EXTEND SHOCK ABSORBER ROD




  ZOOM            SIZED FOR PRINT
Page 3 of 4

  2.   DRILL HOLE TO DISCHARGE GAS FROM CYLINDER Using a drill, make a hole in the cylinder as shown in the
       illustration to discharge the gas inside. CAUTION:
