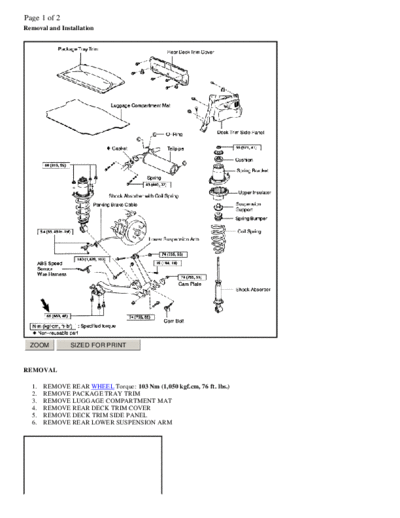

ARTICLE_SUSPENSION_STRUT_REAR_REPLACE_INSTALL


>> Download ARTICLE_SUSPENSION_STRUT_REAR_REPLACE_INSTALL documenatation <<

Text preview - extract from the document
Page 1 of 2
Removal and Installation




  ZOOM         SIZED FOR PRINT


REMOVAL

  1.   REMOVE REAR WHEEL Torque: 103 Nm (1,050 kgf.cm, 76 ft. lbs.)
  2.   REMOVE PACKAGE TRAY TRIM
  3.   REMOVE LUGGAGE COMPARTMENT MAT
  4.   REMOVE REAR DECK TRIM COVER
  5.   REMOVE DECK TRIM SIDE PANEL
  6.   REMOVE REAR LOWER SUSPENSION ARM
Page 2 of 2




  ZOOM            SIZED FOR PRINT



   7.   REMOVE REAR SHOCK ABSORBER Remove the 3 nuts and rear shock absorber. Torque: 80 Nm (816 kgf.cm, 59 ft. lbs.)

INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check the rear wheel alignment.
