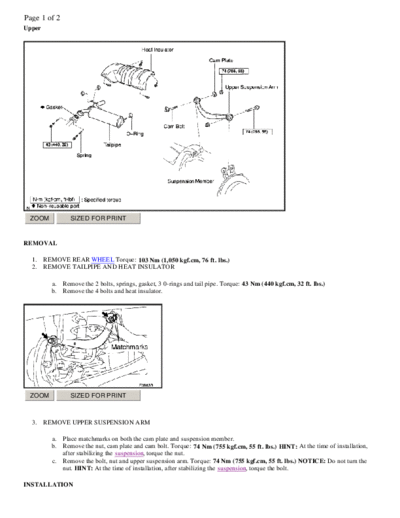

ARTICLE_SUSPENSION_UPPER_CONTROL_ARM_REAR_SERVICE


>> Download ARTICLE_SUSPENSION_UPPER_CONTROL_ARM_REAR_SERVICE documenatation <<

Text preview - extract from the document
Page 1 of 2
Upper




 ZOOM            SIZED FOR PRINT



REMOVAL

  1.    REMOVE REAR WHEEL Torque: 103 Nm (1,050 kgf.cm, 76 ft. lbs.)
  2.    REMOVE TAILPIPE AND HEAT INSULATOR

          a. Remove the 2 bolts, springs, gasket, 3 0-rings and tail pipe. Torque: 43 Nm (440 kgf.cm, 32 ft. lbs.)
          b. Remove the 4 bolts and heat insulator.




 ZOOM            SIZED FOR PRINT



  3.    REMOVE UPPER SUSPENSION ARM

          a. Place matchmarks on both the cam plate and suspension member.
          b. Remove the nut, cam plate and cam bolt. Torque: 74 Nm (755 kgf.cm, 55 ft. lbs.) HINT: At the time of installation,
             after stabilizing the suspension, torque the nut.
          c. Remove the bolt, nut and upper suspension arm. Torque: 74 Nm (755 kgf.cm, 55 ft. lbs.) NOTICE: Do not turn the
             nut. HINT: At the time of installation, after stabilizing the suspension, torque the bolt.

INSTALLATION
Page 2 of 2
Installation is in the reverse order of removal.

HINT: After installation, check the rear wheel alignment.
