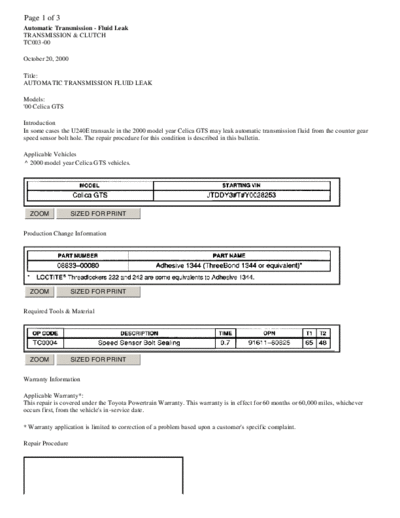

Image preview - the first page of the document



>> Download TSB_AUTO_GTS_TRANNY documenatation <<

Text preview - extract from the document

Page 1 of 3
Automatic Transmission - Fluid Leak
TRANSMISSION & CLUTCH
TC003-00

October 20, 2000

Title:
AUTOMATIC TRANSMISSION FLUID LEAK

Models:
'00 Celica GTS

Introduction
In some cases the U240E transaxle in the 2000 model year Celica GTS may leak automatic transmission fluid from the counter gear
speed sensor bolt hole. The repair procedure for this condition is described in this bulletin.

Applicable Vehicles
^ 2000 model year Celica GTS vehicles.




  ZOOM             SIZED FOR PRINT


Production Change Information




  ZOOM             SIZED FOR PRINT


Required Tools & Material




  ZOOM             SIZED FOR PRINT


Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Powertrain Warranty. This warranty is in effect for 60 months or 60,000 miles, whichever
occurs first, from the vehicle's in -service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure
Page 2 of 3




  ZOOM            SIZED FOR PRINT


1. Remove the counter gear speed sensor and 'O'-ring.
2. Clean the surfaces of the retaining bolt and the bolt hole.
CAUTION :Use protective eye-wear when spraying solvents and compressed air.

A. Blow compressed air into the bolt hole to remove automatic transmission fluid.
B. Clean the bolt hole by using a spray cleaner (brake cleaner, etc.) into the hole.
C. Clean the bolt threads with a wire brush, then use a spray cleaner to remove debris.
D. Repeat the above steps (A through C) 2 to 3 times.
3. Install the speed sensor.

   A. Coat the 'o'-ring with automatic transmission fluid and install it on the sensor.




  ZOOM            SIZED FOR PRINT


B. Lightly apply 1344 sealer (P/N 0883-00080) to the bolt threads and the bolt hole on the transaxle case, as shown.
4. Install the speed sensor with the retaining bolt.

   Torque: 11.3 Nm (115 kgf cm, 8 ft)
5. Let the vehicle sit for at least 30 minutes without running the engine.
Page 3 of 3
6. Start and run the vehicle for several minutes. Check for automatic transmission fluid leakage around the bolt hole.
