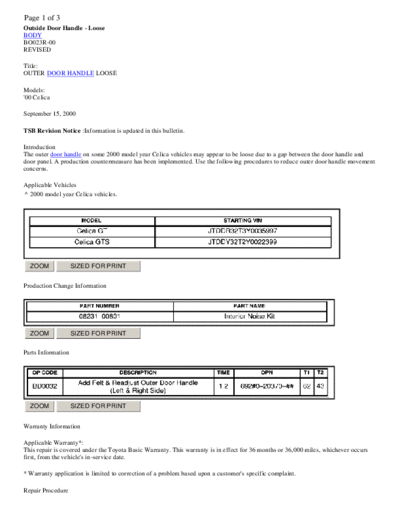

Image preview - the first page of the document



>> Download TSB_BO023R_Door_handle_loose documenatation <<

Text preview - extract from the document

Page 1 of 3
Outside Door Handle - Loose
BODY
BO023R-00
REVISED

Title:
OUTER DOOR HANDLE LOOSE

Models:
'00 Celica

September 15, 2000

TSB Revision Notice :Information is updated in this bulletin.

Introduction
The outer door handle on some 2000 model year Celica vehicles may appear to be loose due to a gap between the door handle and
door panel. A production countermeasure has been implemented. Use the following procedures to reduce outer door handle movement
concerns.

Applicable Vehicles
^ 2000 model year Celica vehicles.




  ZOOM              SIZED FOR PRINT


Production Change Information




  ZOOM              SIZED FOR PRINT


Parts Information




  ZOOM              SIZED FOR PRINT


Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs
first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure
Page 2 of 3
1.   Remove the door trim panel. (Refer to the 2000 MY Celica Repair Manual, page BO-12.)
2.   Peel back the moisture barrier.
3.   Disconnect the door lock rod.
4.   Disconnect the door handle rod.




     ZOOM         SIZED FOR PRINT


5. Remove the 2 bolts on the outer door handle.
6. Remove the outer door handle.




     ZOOM         SIZED FOR PRINT


7. Adjust both mounting tabs inwards 2 mm as shown in illustration.
8. If the outer door handle is still loose after adjusting the mounting tabs, install EPT sealer as indicated below:




     ZOOM         SIZED FOR PRINT


A. Cut 2 pieces of EPT Sealer in the following dimensions;
Page 3 of 3




  ZOOM           SIZED FOR PRINT


B. Install EPT sealer as shown in illustration.
NOTE: Make sure EPT sealer doesn't show when viewed from outside the vehicle.

9. Reassemble in the reverse order of disassembly.
