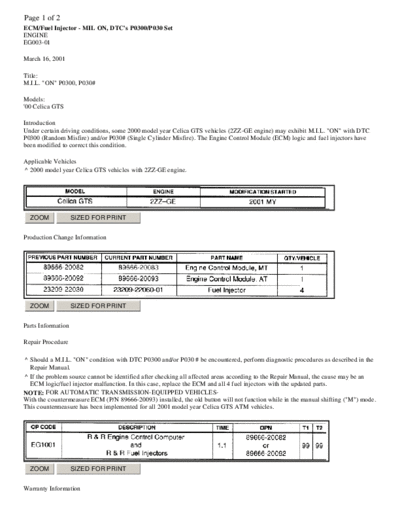

Image preview - the first page of the document



>> Download TSB_ECM_CEL documenatation <<

Text preview - extract from the document

Page 1 of 2
ECM/Fuel Injector - MIL ON, DTC's P0300/P030 Set
ENGINE
EG003-01

March 16, 2001

Title:
M.I.L. "ON" P0300, P030#

Models:
'00 Celica GTS

Introduction
Under certain driving conditions, some 2000 model year Celica GTS vehicles (2ZZ-GE engine) may exhibit M.I.L. "ON" with DTC
P0300 (Random Misfire) and/or P030# (Single Cylinder Misfire). The Engine Control Module (ECM) logic and fuel injectors have
been modified to correct this condition.

Applicable Vehicles
^ 2000 model year Celica GTS vehicles with 2ZZ-GE engine.




  ZOOM              SIZED FOR PRINT


Production Change Information




  ZOOM              SIZED FOR PRINT


Parts Information

Repair Procedure

^ Should a M.I.L. "ON" condition with DTC P0300 and/or P030 # be encountered, perform diagnostic procedures as described in the
  Repair Manual.
^ If the problem source cannot be identified after checking all affected areas according to the Repair Manual, the cause may be an
  ECM logic/fuel injector malfunction. In this case, replace the ECM and all 4 fuel injectors with the updated parts.
NOTE: FOR AUTOMATIC TRANSMISSION-EQUIPPED VEHICLES-
With the countermeasure ECM (P/N 89666-20093) installed, the old button will not function while in the manual shifting ("M") mode.
This countermeasure has been implemented for all 2001 model year Celica GTS ATM vehicles.




  ZOOM              SIZED FOR PRINT


Warranty Information
Page 2 of 2
Applicable Warranty*:
This repair is covered under the Federal Emissions Warranty. This warranty is in effect for 96 months or 80,000 miles, whichever
occurs first, from the vehicle's in -service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
