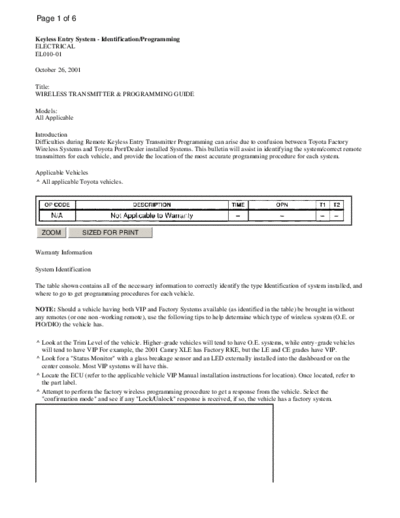

Page 1 of 6

Keyless Entry System - Identification/Programming
ELECTRICAL
EL010-01

October 26, 2001

Title:
WIRELESS TRANSMITTER & PROGRAMMING GUIDE

Models:
All Applicable

Introduction
Difficulties during Remote Keyless Entry Transmitter Programming can arise due to confusion between Toyota Factory
Wireless Systems and Toyota Port/Dealer installed Systems. This bulletin will assist in identifying the system/correct remote
transmitters for each vehicle, and provide the location of the most accurate programming procedure for each system.

Applicable Vehicles
^ All applicable Toyota vehicles.




  ZOOM             SIZED FOR PRINT


Warranty Information

System Identification

The table shown contains all of the necessary information to correctly identify the type Identification of system installed, and
where to go to get programming procedures for each vehicle.

NOTE: Should a vehicle having both VIP and Factory Systems available (as identified in the table) be brought in without
any remotes (or one non -working remote), use the following tips to help determine which type of wireless system (O.E. or
PIO/DIO) the vehicle has.

^ Look at the Trim Level of the vehicle. Higher-grade vehicles will tend to have O.E. systems, while entry-grade vehicles
  will tend to have VIP For example, the 2001 Camry XLE has Factory RKE, but the LE and CE grades have VIP.
^ Look for a "Status Monitor" with a glass breakage sensor and an LED externally installed into the dashboard or on the
  center console. Most VIP systems will have this.
^ Locate the ECU (refer to the applicable vehicle VIP Manual installation instructions for location). Once located, refer to
  the part label.
^ Attempt to perform the factory wireless programming procedure to get a response from the vehicle. Select the
  "confirmation mode" and see if any "Lock/Unlock" response is received, if so, the vehicle has a factory system.
Page 2 of 6




 ZOOM         SIZED FOR PRINT
Page 3 of 6




 ZOOM         SIZED FOR PRINT
Page 4 of 6




  ZOOM              SIZED FOR PRINT


Application Chart
Page 5 of 6




 ZOOM         SIZED FOR PRINT
Page 6 of 6




  ZOOM            SIZED FOR PRINT
