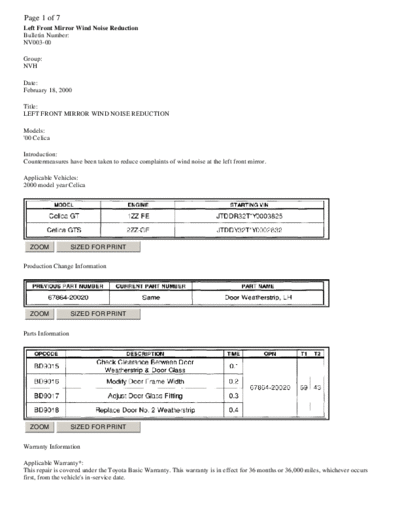

Image preview - the first page of the document



>> Download TSB_REDUCING_WINDNOISE documenatation <<

Text preview - extract from the document

Page 1 of 7
Left Front Mirror Wind Noise Reduction
Bulletin Number:
NV003-00

Group:
NVH

Date:
February 18, 2000

Title:
LEFT FRONT MIRROR WIND NOISE REDUCTION

Models:
'00 Celica

Introduction:
Countermeasures have been taken to reduce complaints of wind noise at the left front mirror.

Applicable Vehicles:
2000 model year Celica




  ZOOM              SIZED FOR PRINT


Production Change Information




  ZOOM              SIZED FOR PRINT


Parts Information




  ZOOM              SIZED FOR PRINT


Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs
first, from the vehicle's in-service date.
Page 2 of 7
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.




  ZOOM           SIZED FOR PRINT


Repair Procedure Flowchart:

Repair Procedure:




  ZOOM           SIZED FOR PRINT


A. Check Clearance Between Left Side Door Weatherstrip and Door Glass.
   1. Insert a business card between the door glass and the weatherstrip as shown. It the business card falls between the door glass
Page 3 of 7
        and the weatherstrip, proceed to step B. It it does not, no repair is necessary.




  ZOOM             SIZED FOR PRINT


B. Modify Door Frame Width.
   1. Lower the door glass.
   2. Remove the door mirror base cover (a) (with 1 clip and 2 cover claws).




  ZOOM             SIZED FOR PRINT


3.   Clamp the door frame using a C- clamp at point P to 1-2 mm.
4.   Repeat step A to check clearance between the left side door weatherstrip and door glass.
5.   It it passes this test, reassemble the vehicle in the reverse order of disassembly.
6.   Continue to step C if it does notpass this test.
C. Adjust Door Glass Fitting.
   1. Remove the door trim. Please refer to the 2000 MY Celica Repair Manual pages BO-11 through BO -12.
Page 4 of 7




 ZOOM            SIZED FOR PRINT


2. Remove seals (b, c) to expose the up-stop bolts (will be reused).




 ZOOM            SIZED FOR PRINT


3. Mark the original position of the up- stop bolts (d, e) using a marker.




 ZOOM            SIZED FOR PRINT


4. Loosen the up-stop bolts (d, e). Raise the bolts 1.5 mm and tighten them in this new location.
5. Raise the door glass and close the door. Confirm that the door glass does not interfere with the root drip molding and the roof side
   weatherstrip.
6. Reinstall seals (b, c).
Page 5 of 7




 ZOOM            SIZED FOR PRINT


7. Repeat step A to check the clearance between the left side door weatherstrip and door glass.
8. If it passes this lest, reassemble the vehicle in the reverse order of disassembly.
9. Continue to step D if it does notpass this test.
D. Replacement of Door No.2 Weatherstrip.
   1. Lower the door glass.
Page 6 of 7
  ZOOM            SIZED FOR PRINT


2. Remove the door mirror (3 bolts and 1 connector).




  ZOOM            SIZED FOR PRINT


3. Remove the inner plastic seal (f).
4. Loosen the glass run rail lower bolt (g).
NOTE: Do not remove the lower bolt.

5. Remove the glass run rail upper bolt (h).




  ZOOM            SIZED FOR PRINT


6. Slide the glass run rail rearward and remove the door weatherstrip (2 plastic clips).




  ZOOM            SIZED FOR PRINT
Page 7 of 7
7. Attach a rubber piece to a new door weatherstrip with glue as shown. Clean the mating surfaces before gluing the rubber piece in
   place.

   Rubber piece size:

   LxWxT
   20 mm x 2 mm x 1.5 mm




  ZOOM           SIZED FOR PRINT


8. Install the new door weatherstrip (2 clips).
9. Reassemble the vehicle in the reverse order of disassembly.
NOTE: Be sure to fasten the bottom of the door weatherstrip between the glass run and door frame.
