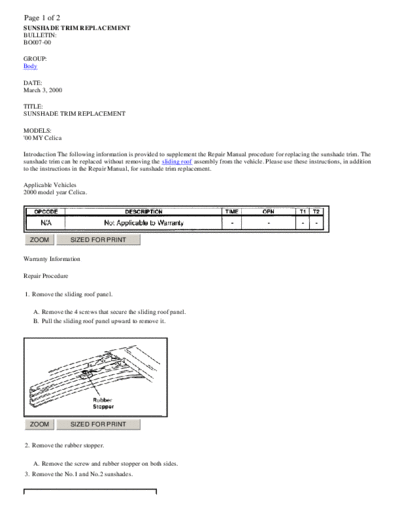

Image preview - the first page of the document
TSB_Sunshade_removal


>> Download TSB_Sunshade_removal documenatation <<

Text preview - extract from the document
Page 1 of 2
SUNSHADE TRIM REPLACEMENT
BULLETIN:
BO007-00

GROUP:
Body

DATE:
March 3, 2000

TITLE:
SUNSHADE TRIM REPLACEMENT

MODELS:
'00 MY Celica

Introduction The following information is provided to supplement the Repair Manual procedure for replacing the sunshade trim. The
sunshade trim can be replaced without removing the sliding roof assembly from the vehicle. Please use these instructions, in addition
to the instructions in the Repair Manual, for sunshade trim replacement.

Applicable Vehicles
2000 model year Celica.




  ZOOM             SIZED FOR PRINT


Warranty Information

Repair Procedure

1. Remove the sliding roof panel.

   A. Remove the 4 screws that secure the sliding roof panel.
   B. Pull the sliding roof panel upward to remove it.




  ZOOM             SIZED FOR PRINT


2. Remove the rubber stopper.

   A. Remove the screw and rubber stopper on both sides.
3. Remove the No.1 and No.2 sunshades.
Page 2 of 2




  ZOOM            SIZED FOR PRINT


A. Release the spring between the No.1 and No.2 sunshades on both sides.




  ZOOM            SIZED FOR PRINT


B. Bend the No.1 sunshade in the center to remove it as shown.
C. Repeal the same procedure for the No.2 sunshade.
NOTE: Bending the sunshade excessively may cause damage.




  ZOOM            SIZED FOR PRINT


HINT: When re-installing the sunshade, insert it into the slider rail as shown.
